The INA826AIDGK is a high-precision instrumentation amplifier from Texas Instruments, designed to offer excellent accuracy and low noise in a wide range of applications. This amplifier is well-suited for small-signal measurements in medical, industrial, and automotive systems, where high common-mode rejection and low power consumption are critical.

Key Features:

• High Precision: With a low offset voltage and drift, the INA826 ensures accurate signal amplification, making it ideal for precision applications.
• Wide Supply Range: The device can operate from a single supply of 2.7V to 36V or a dual supply of ±1.35V to ±18V, providing flexibility in various system designs.
• Adjustable Gain: Gain can be easily configured with a single external resistor, allowing for customization to specific application requirements.
• Low Quiescent Current: The amplifier's low power consumption makes it suitable for battery-powered devices, helping to extend operational life.
• Excellent Common-Mode Rejection Ratio (CMRR): High CMRR minimizes the effect of unwanted signals, thereby enhancing measurement precision.
• Robust Design: The INA826AIDGK is specified for the extended industrial temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.

Applications:

• Medical instrumentation such as ECG and non-invasive blood pressure monitors
• Industrial process controls and sensor measurement
• Automotive sensor signal conditioning
• Data acquisition systems
• Portable instrumentation

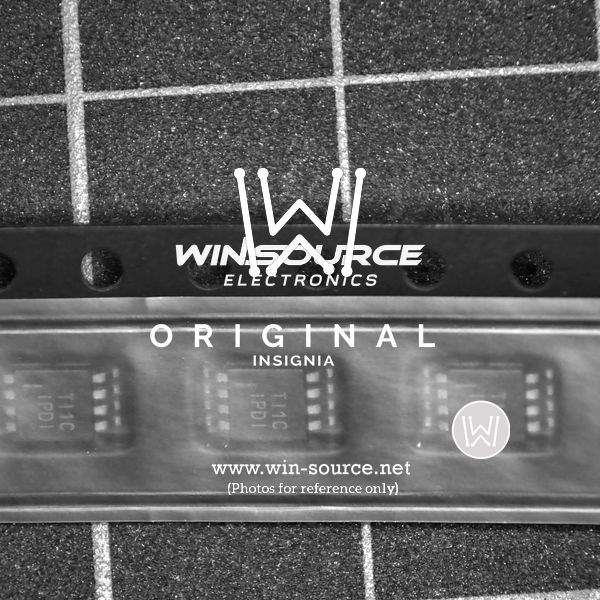

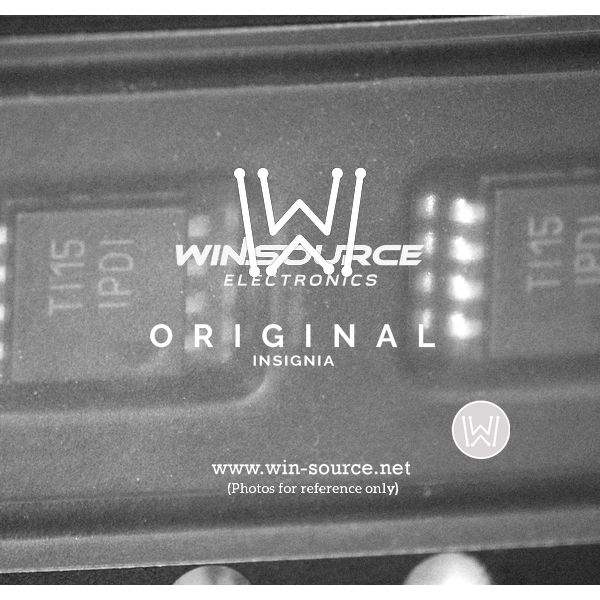

The INA826AIDGK comes in a VSSOP-10 package, which is compact and suitable for space-constrained applications. Its pin configuration and small footprint make it easy to integrate into a variety of circuit designs. With Texas Instruments' reputation for quality and reliability, the INA826AIDGK is a solid choice for professionals seeking a top-performing instrumentation amplifier.
