Overview of Texas Instruments INA300AIDSQR

The INA300AIDSQR is a sophisticated current-sensing solution from Texas Instruments, designed for high-precision applications. This device is part of the INA300 series, which is known for its reliability and performance in current measurement tasks. The INA300AIDSQR is particularly suitable for systems that require overcurrent protection or monitoring, such as power management systems, battery chargers, and motor control circuits.

Key Features

• High Accuracy: The INA300AIDSQR provides highly accurate current sensing, which is essential for systems that need to closely monitor and control current flow to prevent damage or optimize performance.
• Wide Voltage Range: It operates over a wide common-mode voltage range, accommodating various applications and ensuring versatility in system design.
• Adjustable Threshold: The overcurrent threshold is adjustable, giving designers the flexibility to set precise overcurrent limits based on the specific needs of their application.
• Fast Response Time: With a quick response time, the INA300AIDSQR can promptly detect overcurrent conditions, helping to protect critical components from potential harm.

Applications

The INA300AIDSQR is ideal for a range of applications that require accurate and reliable current measurement and overcurrent protection. This includes:

• Power supplies and DC/DC converters
• Battery management systems
• Motor control and drive systems
• Overcurrent fault protection in consumer electronics
• Industrial automation and process control

Technical Specifications

Some of the technical specifications that make the INA300AIDSQR a standout product include:

• Supply voltage range from 2.7V to 5.5V
• Common-mode voltage range from -0.3V to 26V
• Adjustable overcurrent threshold
• Open-drain alert output
• Operating temperature range from -40°C to 125°C

Package and Quality

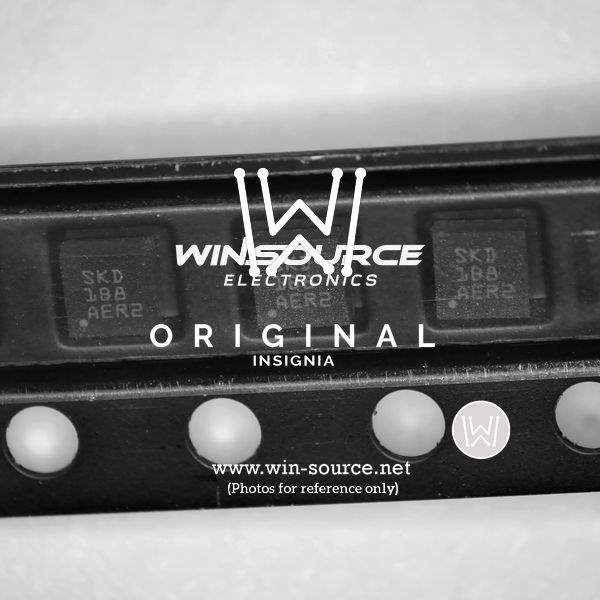

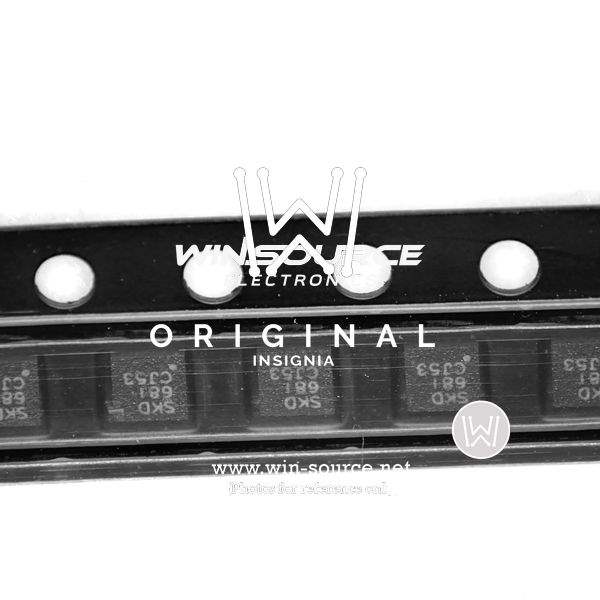

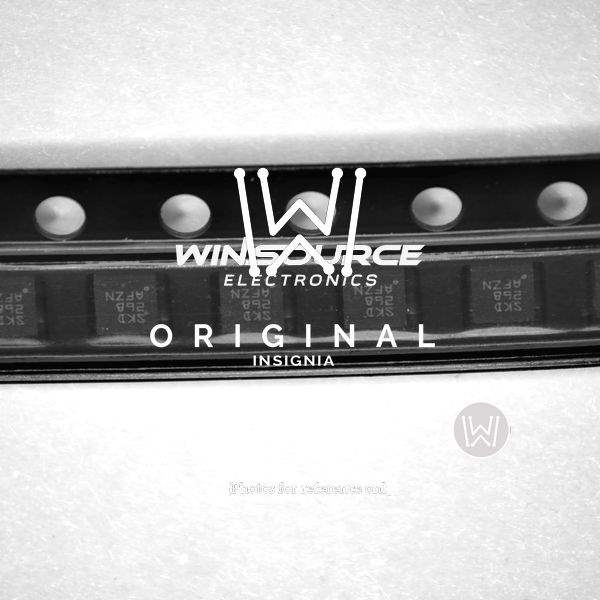

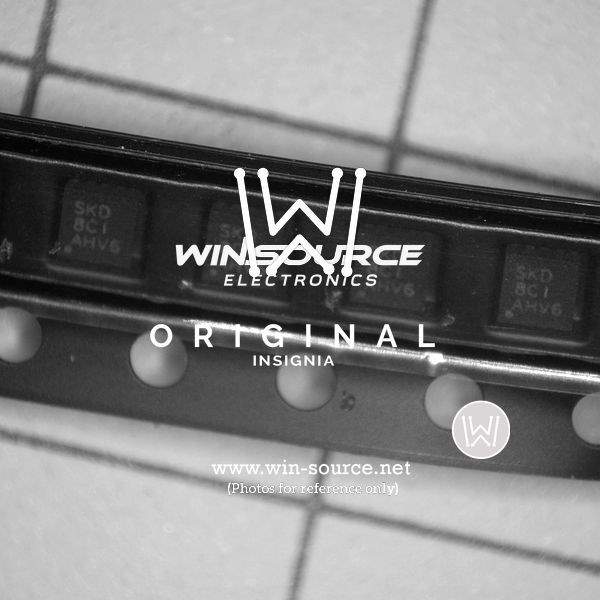

The INA300AIDSQR comes in a compact, surface-mount package that is RoHS compliant and designed for automated assembly processes. Texas Instruments is known for its commitment to quality, and this product is no exception, ensuring reliability and performance for critical applications.

In summary, the INA300AIDSQR from Texas Instruments is a versatile and precise current-sensing and overcurrent protection device that can be integrated into a wide range of electronic systems. Its high accuracy, adjustable threshold, and fast response time make it an excellent choice for designers looking to enhance system safety and performance.
