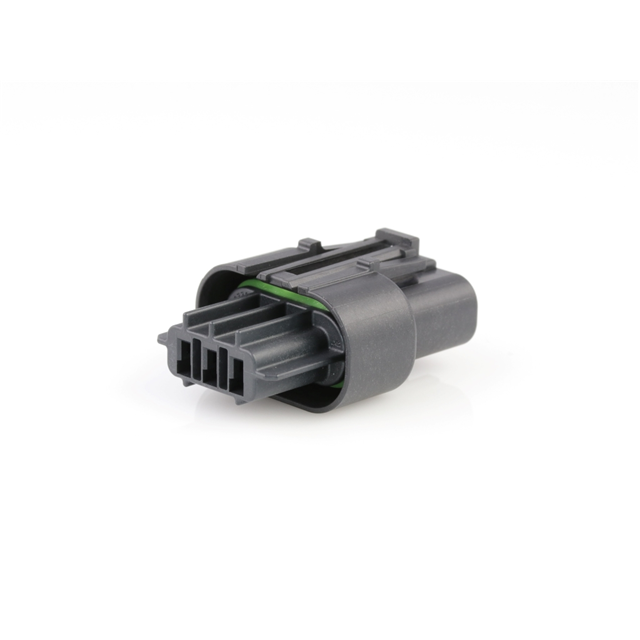

2077820003 Molex
Same model may have multiple batches, images only for reference.

2077820003

Part No 2077820003
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT HSG 3POS 3.60MM
Datasheet
2077820003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >Rectangular Connectors >Rectangular Connector Housings
Manufacturer Molex
Packaging  Tray
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.142" (3.60mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 2077820003 CAD Model

Description

Squba 3.6 Sealed Receptacle Assembly, 3.60mm Pitch, 3 Circuits, Single Row, Glow-Wire Capable, Black, UL1007/UL1061 Compatible
