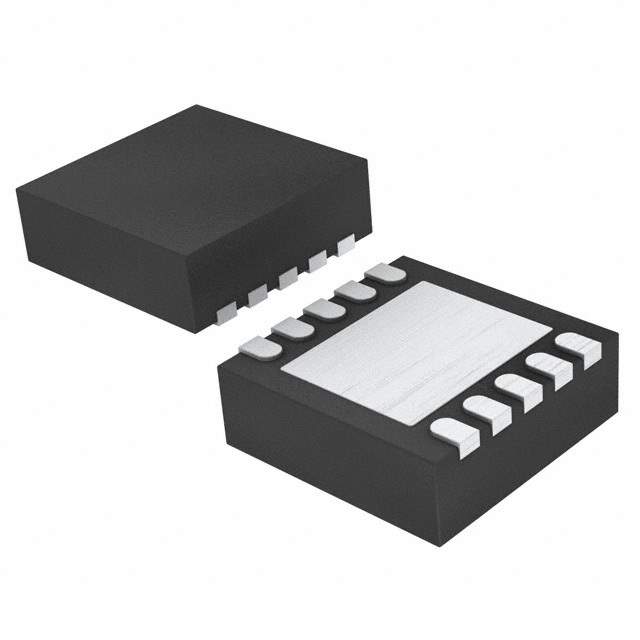

Product Overview: INA223AIDSKT by Texas Instruments

The INA223AIDSKT is a versatile, high-precision current shunt and power monitor with an I2C-compatible interface. Designed by Texas Instruments, this device provides industry-leading performance for accurate current and power measurement in both consumer and industrial applications. The INA223AIDSKT features a wide common-mode voltage range, making it suitable for a broad array of systems, from battery chargers to power management modules.

Key Features

• High Accuracy: The INA223AIDSKT delivers precise measurements with a maximum offset error of ±80 µV and gain error of ±0.1%, ensuring reliable monitoring for critical applications.
• Wide Common-Mode Range: With a common-mode voltage range of 0 to 26 V, this device is highly adaptable and can be used in various systems without signal distortion or loss of accuracy.
• Programmable Calibration: Users can calibrate both current and power measurements to optimize performance for specific shunt resistor values and system voltages.
• I2C Interface: The integrated I2C interface allows for easy communication with microcontrollers and other digital systems, supporting both standard and fast mode speeds.
• Multiple Alert Functions: The INA223AIDSKT includes programmable alert functions for overcurrent, undercurrent, and over- and under-power conditions, enhancing system protection and reliability.

Applications

The INA223AIDSKT is ideal for a wide range of applications, including:

• Power management in servers and telecom equipment
• Battery chargers and management systems
• Energy monitoring in smart power strips and green energy systems
• Test and measurement equipment
• Automotive systems, such as battery management and in-vehicle networking

The INA223AIDSKT offers designers a compact, efficient, and precise solution for current and power monitoring needs. Its small form factor and ease of use, combined with Texas Instruments' reputation for quality and performance, make it an excellent choice for engineers looking to enhance their system's power management capabilities.
