The INA132UA/2K5E4 is a high-quality instrumentation amplifier designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This precision amplifier is known for its low power consumption and excellent accuracy, making it an ideal choice for a wide range of applications including medical instrumentation, industrial process controls, and battery-powered devices.

Key Features

• Low Power Consumption: The INA132UA/2K5E4 is designed for power-sensitive applications. It operates with a quiescent current of just 470µA, which is ideal for battery-powered and portable devices.
• Single Supply Operation: This amplifier can be powered by a single supply ranging from 2.7V to 36V, or dual supplies of ±1.35V to ±18V, providing flexibility in various circuit designs.
• High Accuracy: With a minimum common-mode rejection ratio (CMRR) of 94dB and a minimum power supply rejection ratio (PSRR) of 90dB, the INA132UA/2K5E4 ensures accurate signal amplification with minimal interference from noise.
• Wide Bandwidth: It features a bandwidth of 200kHz, which allows it to handle a broad range of frequencies without compromising the integrity of the signal.
• Low Offset Voltage: The device offers a low input offset voltage, which reduces error and increases precision in measurement systems.

Applications

The INA132UA/2K5E4's robust feature set makes it suitable for various applications, including:

• Test equipment
• Medical instrumentation
• Industrial process controls
• Weigh scales
• Battery-powered devices
• Data acquisition systems

Package and Quality

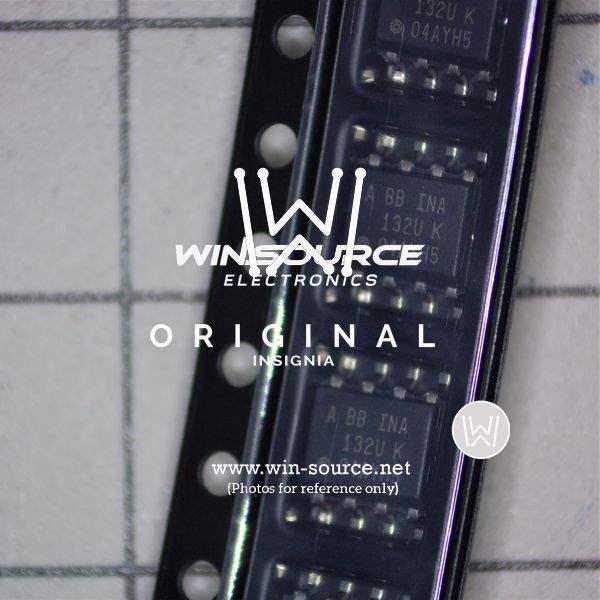

The INA132UA/2K5E4 comes in a SOIC-8 (Small Outline Integrated Circuit) package, which is compact and suitable for space-constrained applications. Texas Instruments ensures high reliability and performance by adhering to stringent quality control measures. The device is also RoHS compliant, meaning it meets the European Union's directives on the restriction of hazardous substances.
