Overview of Texas Instruments EKS-LM3S9D90

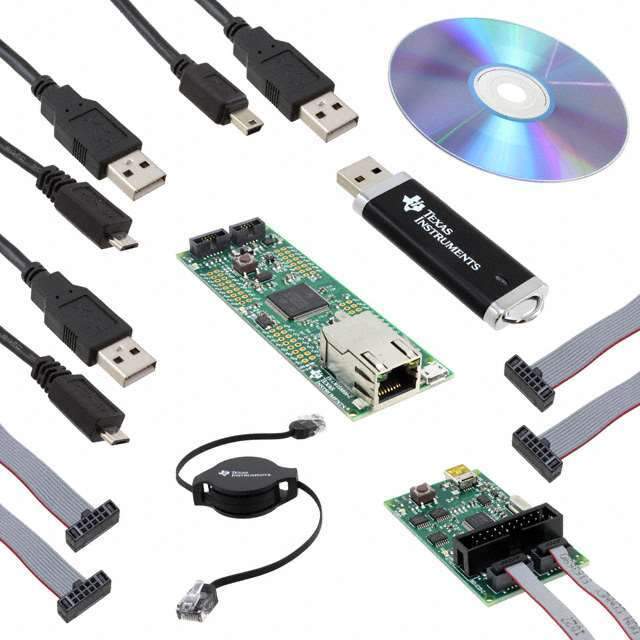

The Texas Instruments EKS-LM3S9D90 is a feature-rich evaluation kit designed to provide a comprehensive platform for developers to explore the capabilities of the LM3S9D90 microcontroller, which is part of the Stellaris® family of ARM® Cortex™-M3 based microcontrollers. This evaluation kit is an ideal starting point for creating sophisticated applications in industrial, medical, home appliance, and consumer electronics markets.

Key Features

• High-Performance ARM Cortex-M3 Processor: At the heart of the EKS-LM3S9D90 is an ARM Cortex-M3 processor running at speeds up to 100 MHz, providing a balance of efficiency and computing power suitable for a variety of applications.
• Memory and Storage: The kit includes 256KB of Flash memory and 96KB of SRAM, providing ample space for application code and data storage.
• Extensive I/O Capabilities: A wide range of peripherals including GPIOs, UARTs, I2C, SPI, CAN, and USB interfaces are available, which enable developers to connect a multitude of sensors, actuators, and communication modules.
• Integrated 10/100 Ethernet MAC+PHY: For applications requiring network connectivity, the onboard Ethernet MAC and PHY support 10/100 Mbps Ethernet for seamless integration into networked systems.
• QVGA Display: The evaluation kit comes with a QVGA display providing a graphical interface for user interaction and data visualization.
• Onboard Debugging: With an In-Circuit Debug Interface (ICDI), developers can easily debug their applications without the need for additional hardware.

Software Support

The EKS-LM3S9D90 is supported by Texas Instruments' comprehensive software ecosystem, which includes the StellarisWare® software package. This package features a robust library of software examples, drivers, and middleware to jumpstart development and reduce time to market.

Development Flexibility

Developers can take advantage of the stackable BoosterPack™ pinout for expandability and compatibility with additional modules, enhancing the functionality of the evaluation kit. The EKS-LM3S9D90's flexible design and software support make it a versatile choice for a wide array of embedded system projects.

Whether you are a seasoned engineer or a student just starting out, the Texas Instruments EKS-LM3S9D90 evaluation kit provides a solid foundation for developing advanced and reliable embedded solutions.
