Overview of the TL1963A-33EVM Evaluation Module

The TL1963A-33EVM is a fully assembled and tested circuit for evaluating the TL1963A-33, a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments. This particular evaluation module (EVM) is designed to help both designers and engineers quickly assess the capabilities and performance of the TL1963A-33 regulator in a variety of applications.

Key Features of the TL1963A-33EVM

• Fixed Output Voltage: The EVM provides a fixed 3.3V output, suitable for powering a wide range of digital and analog circuits.
• High Current Capability: With the ability to deliver up to 1.5A of continuous output current, this EVM is ideal for high-power applications.
• Low Dropout Voltage: The TL1963A-33 regulator features a low dropout voltage, ensuring efficient operation even when the input-to-output differential is minimal.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to enhance the reliability and longevity of both the regulator and the EVM.
• Adjustable Soft-Start: The soft-start feature reduces inrush current during startup, which can be adjusted using external components on the EVM.
• Stable with Low-ESR Output Capacitors: The regulator is stable with ceramic capacitors, which are known for their low equivalent series resistance (ESR).

Applications for the TL1963A-33EVM

The TL1963A-33EVM is versatile and can be used in a variety of applications, including:

• Power supplies for FPGAs, DSPs, and microprocessors
• Post-regulation for switching supplies
• Battery-powered devices
• High-performance audio and video equipment

Getting Started with the TL1963A-33EVM

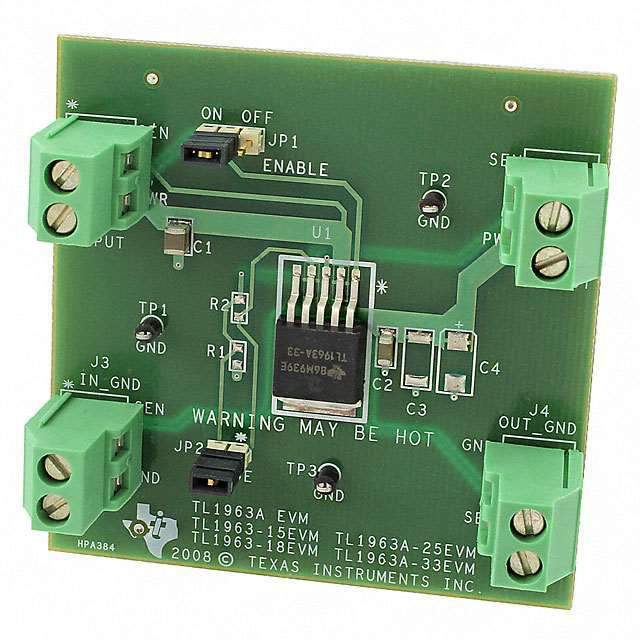

Out of the box, the TL1963A-33EVM is ready for immediate use. Engineers can simply connect the input power and load to the EVM to evaluate the performance of the TL1963A-33 LDO regulator. The EVM also includes test points and jumpers for easy measurement and configuration of the regulator's settings. Comprehensive documentation, including a user guide and schematic, is available from Texas Instruments to assist in the evaluation and design-in process.

With its robust design and extensive features, the TL1963A-33EVM from Texas Instruments is an excellent tool for quickly and effectively evaluating the TL1963A-33 voltage regulator in a variety of applications.
