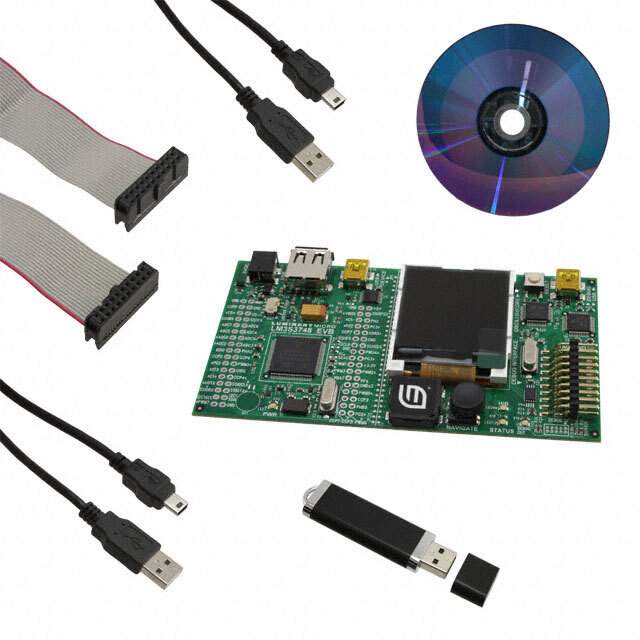

The EKS-LM3S3748 is a robust and versatile evaluation kit produced by Texas Instruments, designed to provide developers with a comprehensive platform for creating and testing applications for the LM3S3748 microcontroller. This microcontroller is a member of the ARM Cortex-M3 based Stellaris family, which is known for its high performance, reliability, and energy efficiency.

Key Features

• ARM Cortex-M3 Core: The LM3S3748 microcontroller is built around a 32-bit ARM Cortex-M3 processor core, which runs at speeds up to 50 MHz, offering a balanced combination of computing power and energy efficiency.
• Memory and Storage: It comes equipped with 256 KB of Flash memory and 64 KB of SRAM, providing ample space for application code and data storage.
• Integrated Peripherals: A range of on-chip peripherals are available, including analog-to-digital converters (ADCs), serial communication interfaces (UART, SPI, I2C), timers, and GPIOs, which expand the capabilities of the microcontroller for various applications.
• QVGA Display: The kit features a QVGA display for rich user interface development, enabling the creation of visually engaging applications.
• USB Connectivity: With both Host and Device USB connectivity, the EKS-LM3S3748 offers flexible communication options, making it ideal for developing USB applications.
• Networking Capabilities: An Ethernet MAC with PHY is included, allowing for easy integration into networked systems.
• Expansion Options: The evaluation kit provides an expansion port, making it easy to connect to other hardware components or evaluation boards for extended functionality.

Development Support

The EKS-LM3S3748 is supported by Texas Instruments' comprehensive development ecosystem. This includes the StellarisWare software, which provides a rich set of drivers, libraries, and example code to jumpstart development. Additionally, the evaluation kit is compatible with a wide range of development tools and integrated development environments (IDEs), including Keil, IAR, and Code Composer Studio.

Applications

With its powerful processing core and extensive range of peripherals, the EKS-LM3S3748 is well-suited for a variety of applications, including industrial control systems, networking equipment, point-of-sale systems, and medical devices. Its ease of use and expandability make it an excellent choice for both professional engineers and educators alike.
