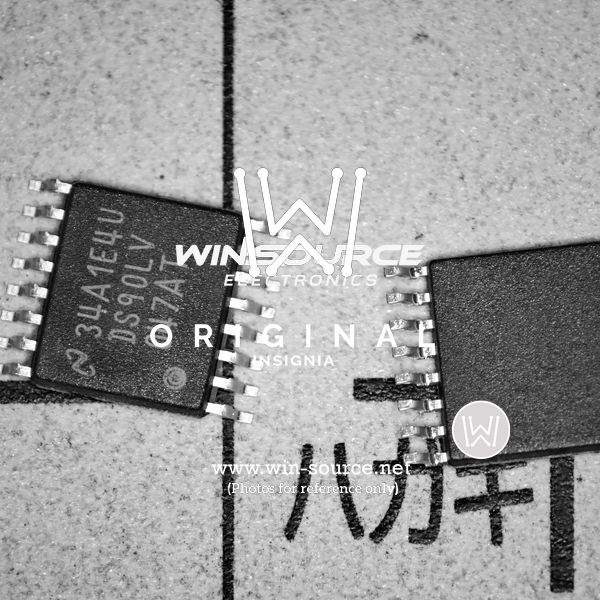

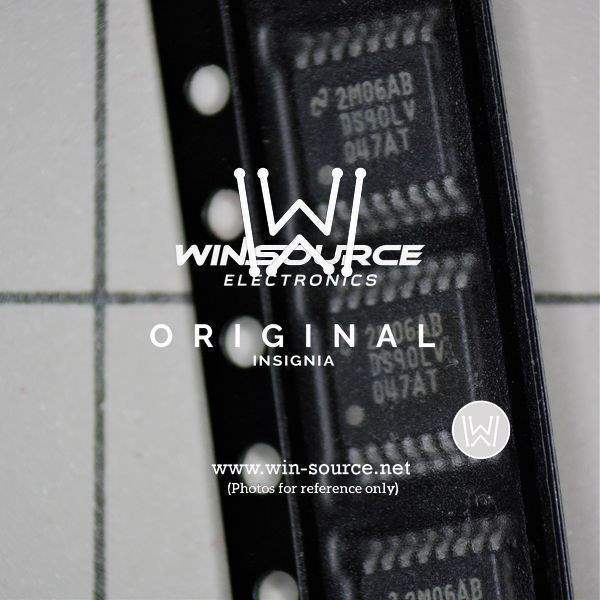

Product Overview: Texas Instruments DS90LV047ATMTCX

The DS90LV047ATMTCX is a robust line driver device from Texas Instruments, designed to deliver high-performance signal transmission over low-voltage differential signaling (LVDS) lines. This product is a part of the LVDS family and is specifically engineered to address the needs of high-speed data communication in a variety of applications.

This device comprises four differential line drivers that are capable of providing high-speed data transfers while maintaining signal integrity, even in demanding environments. The DS90LV047ATMTCX operates with a nominal voltage of 3.3V, which makes it compatible with a wide range of industry-standard systems and power supplies.

Key Features

• High Data Rates: The DS90LV047ATMTCX supports data rates up to 400 Mbps, making it suitable for high-speed data transmission requirements.
• Low Power Consumption: It is designed for low power operation, which helps to reduce overall system power consumption and heat generation.
• Reduced EMI: The LVDS technology used in the device minimizes electromagnetic interference (EMI), a critical factor for maintaining signal integrity in noise-sensitive applications.
• Wide Operating Temperature Range: The device can operate over an extended temperature range, ensuring reliability and performance under varying environmental conditions.
• Flow-Through Pinout: The flow-through design of the pinout simplifies PCB layout and reduces crosstalk, further enhancing the signal quality and ease of design.

Applications

The DS90LV047ATMTCX is ideal for a wide range of applications where reliable high-speed data transmission is required. These include:

• Telecommunications
• Networking equipment such as switches and routers
• Computer peripherals
• Industrial control systems
• Medical imaging devices

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the DS90LV047ATMTCX is no exception. The device is built to meet or exceed industry standards for performance and reliability. Additionally, it is available in a compact 16-pin TSSOP (Thin Shrink Small Outline Package) that is RoHS compliant, ensuring adherence to environmental regulations.

With its combination of high-speed performance, low power consumption, and robust design, the DS90LV047ATMTCX from Texas Instruments is an excellent choice for designers looking to improve their data communication systems.
