Same model may have multiple batches, images only for reference.

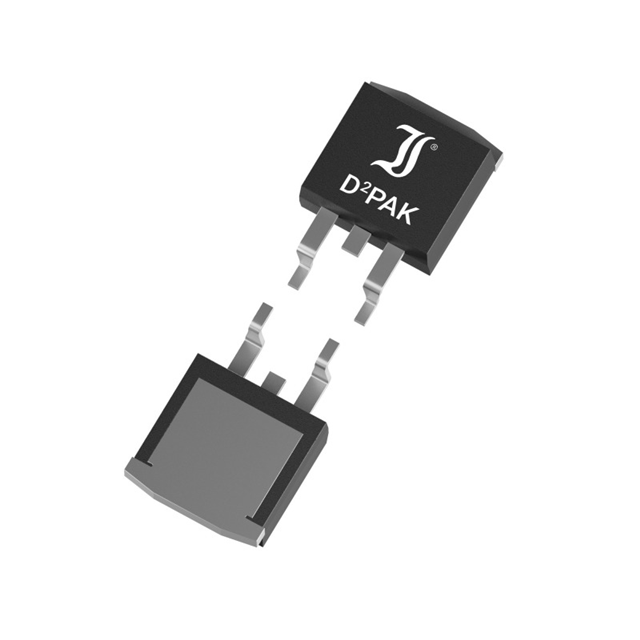

SK3040CD2 Real Image
Same model may have multiple batches, images only for reference.

SK3040CD2

Part No SK3040CD2
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description SchottkyD, 40V, 30A  /  Diode Array 1 Pair Common Cathode Schottky 40 V 15A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SK3040CD2
Standard Package 50
Win Source Part Number 1206159-SK3040CD2
Ultra Librarian 3D Model Ultra Librarian SK3040CD2 CAD Model

Description

The SK3040CD2 is a Schottky diode pair that has a fast recovery time of less than 500ns and can handle currents of up to 15A.

  • Recovery Time: less than 500ns
  • Current: 15A
  • Configuration: Common Cathode
  • Voltage: 40V
  • Forward Voltage: 550mV @ 15A
  • Reverse Leakage Current: 500μA @ 40V
  • Package: TO-263AB (D2PAK)
  • Mounting Technology: SMD (SMT)
  • Manufacturer: Diotec Semiconductor
  • Package Type: Tube
