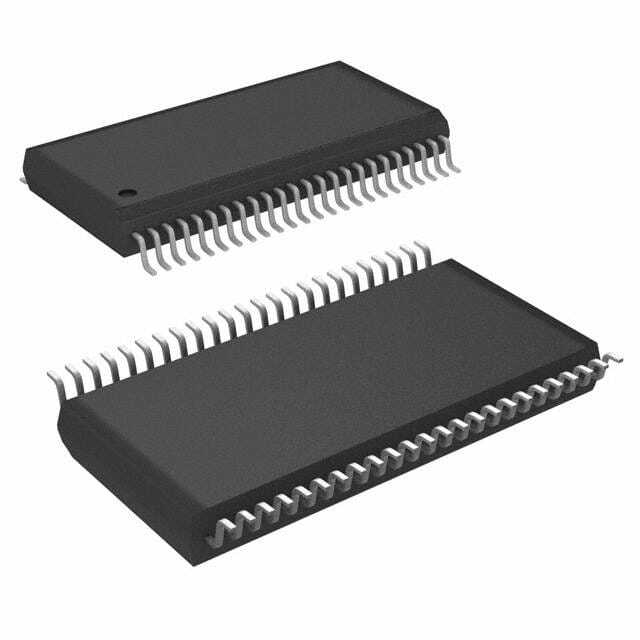

Product Overview: DS90CF564MTD/NOPB

The DS90CF564MTD/NOPB is a versatile and high-performance serializer/deserializer (SerDes) component designed and manufactured by the renowned semiconductor company, Texas Instruments. This device is part of the Channel Link family of products, which are known for their ability to provide high-speed data transfer over a low number of signal lines, significantly simplifying cable and PCB trace designs.

The DS90CF564MTD/NOPB is particularly designed to interface with flat panel displays and is widely used in the automotive industry for its robustness and reliability. It operates by converting a 28-bit wide parallel bus into a serialized data stream which is then transmitted over a differential line to a compatible receiver. This process greatly reduces the number of data lines required, thus minimizing connection complexity and potential signal integrity issues.

Key Features:

• High Data Bandwidth: Capable of serializing data at speeds up to 1.8 Gbps, making it suitable for high-resolution and high-refresh-rate displays.
• Reduced EMI: The differential signaling employed by the DS90CF564MTD/NOPB helps to reduce electromagnetic interference, a critical factor in automotive and industrial applications.
• Low Voltage Operation: Designed to operate at 3.3V, it ensures compatibility with a wide range of modern digital circuits and systems.
• Hot-Plug Capability: It can be connected or disconnected from a live system without the need for powering down or resetting, enhancing serviceability and user experience.
• Power Down Mode: Includes a power-down mode for reduced power consumption when the device is not in active use.
• Industrial Temperature Range: Operates across a wide temperature range, ensuring reliability under extreme conditions.

Applications:

The DS90CF564MTD/NOPB is ideal for a variety of applications that require high-speed data transfer and minimal cabling, such as:

• Automotive infotainment and dashboard displays
• Industrial control displays
• Medical imaging devices
• High-resolution video signage

With its combination of performance, reliability, and ease of use, the DS90CF564MTD/NOPB from Texas Instruments is a top choice for engineers and designers looking to implement advanced display solutions in their products.
