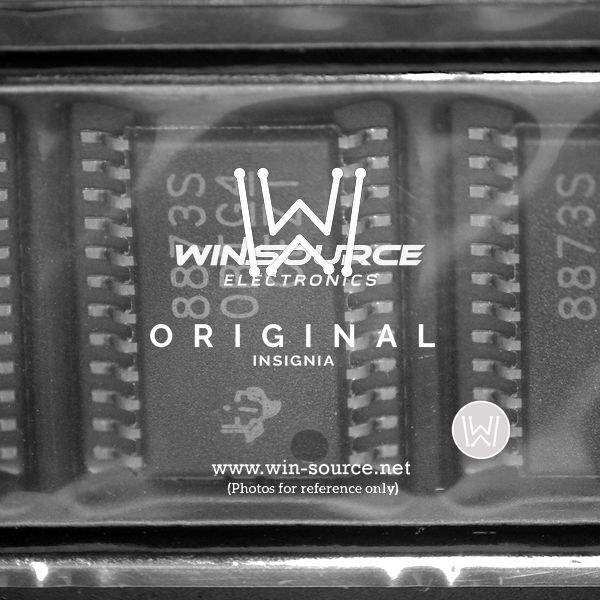

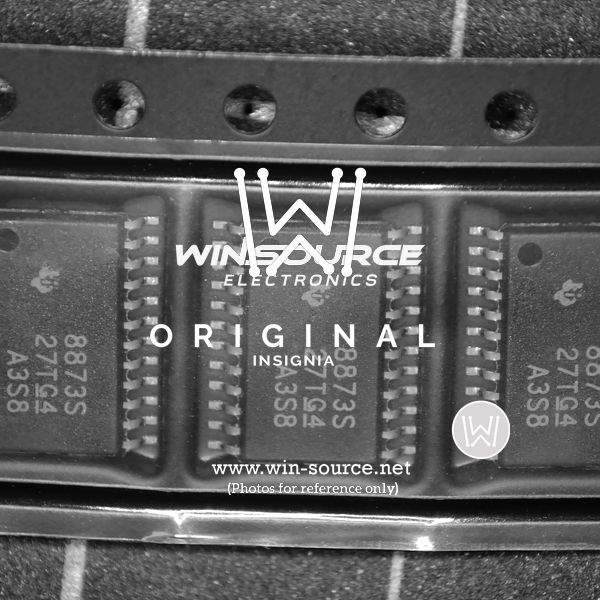

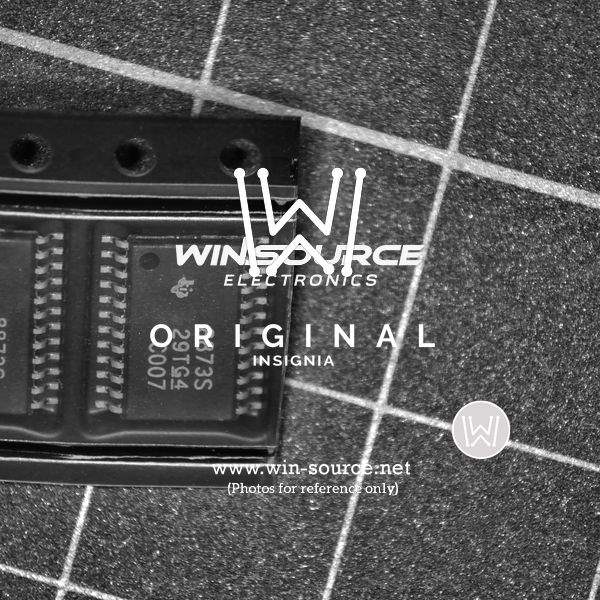

Product Overview: Texas Instruments DRV8873SPWPR Motor Driver

The Texas Instruments DRV8873SPWPR is a highly integrated H-bridge motor driver designed to efficiently drive a DC motor with advanced features that enhance system performance and reliability. This motor driver is suitable for a wide range of applications, including industrial automation, home appliances, automotive, and consumer electronics.

Key Features:

• Integrated H-Bridge: The DRV8873SPWPR features an integrated H-bridge that can deliver up to 3.6A of continuous drive current with peak currents up to 5A, making it capable of driving a broad range of DC motors.
• Wide Supply Voltage Range: It operates over a wide supply voltage range from 6.5V to 45V, providing flexibility for various power supply requirements.
• Smart Gate Drive: The smart gate drive architecture reduces power dissipation and improves thermal performance, enabling the use of smaller heatsinks and compact designs.
• Protection Features: The device includes multiple protection features such as overcurrent, overtemperature, undervoltage lockout, and short-circuit protection, enhancing the safety and durability of the motor driver.
• Configurable Control Interface: The DRV8873SPWPR can be configured through both PWM and PHASE/ENABLE interfaces, offering versatility for different control schemes.
• Diagnostic Outputs: Integrated diagnostic outputs provide real-time feedback on the status of the motor driver, which can be used for fault detection and system monitoring.

Package and Quality:

Packaged in a 16-pin HTSSOP (PowerPAD™) package, the DRV8873SPWPR is designed with a thermally efficient layout that supports optimal heat dissipation. Texas Instruments ensures high standards of quality and reliability, making this motor driver a reliable choice for demanding applications.

Applications:

• Automated Guided Vehicles (AGVs)
• Robotics
• Conveyor belts
• Power tools
• Home appliances

The DRV8873SPWPR motor driver from Texas Instruments is an excellent solution for designers looking to add robust and efficient motor control to their projects with minimal additional components and design complexity.
