Product Overview: Texas Instruments DRV8801RTYT Motor Driver

The Texas Instruments DRV8801RTYT is a versatile and robust motor driver designed to cater to a wide range of applications that require precise control over small brushed DC motors. This compact and efficient motor driver is part of the highly esteemed DRV family, known for its reliability and performance in driving motors.

Key Features

• Motor Type: The DRV8801RTYT is capable of driving a single brushed DC motor, offering a simple solution for applications that require motor control without the complexity of managing multiple motors.
• Output Current: It can deliver up to 2.8A of continuous output current, ensuring adequate power for a range of small to medium-sized motors.
• Operating Voltage Range: With an operating voltage range from 8V to 36V, the driver is versatile and can be used in various systems with different power requirements.
• Protection Features: The device includes multiple protection features such as overcurrent, overtemperature, and undervoltage lockout, safeguarding both the motor driver and the motor from potential damage.
• Control Interface: The DRV8801RTYT offers a simple PWM (Pulse Width Modulation) interface for speed control, as well as a PHASE input for direction control, providing straightforward integration into existing systems.

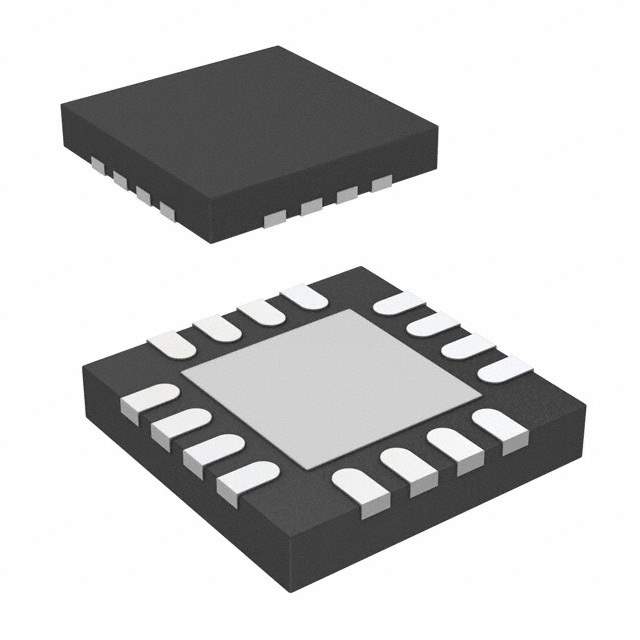

• Package: Housed in a compact 16-pin QFN package with a thermal pad, the DRV8801RTYT saves space on the PCB while ensuring efficient heat dissipation.

Applications

The Texas Instruments DRV8801RTYT motor driver is an ideal choice for a variety of applications, including but not limited to:

• Robotics and automated machinery
• Consumer electronics
• Office automation equipment
• Battery-powered toys and gadgets
• Small pumps and fans

With its robust design and comprehensive feature set, the DRV8801RTYT from Texas Instruments provides designers with a reliable and efficient solution for controlling brushed DC motors in their projects. Whether you are working on a sophisticated robot or a simple consumer electronic device, this motor driver offers the performance and protection needed for a successful implementation.
