Product Overview: DAC5686IPZPG4 by Texas Instruments

The DAC5686IPZPG4 is a high-performance, dual-channel digital-to-analog converter (DAC) designed by Texas Instruments, tailored for demanding applications that require high-speed data conversion with precise signal fidelity. This component is ideal for use in wireless communication systems, test equipment, and sophisticated imaging solutions, offering designers a blend of speed, accuracy, and functionality.

Key Features

• High-Speed Performance: The DAC5686IPZPG4 offers an impressive update rate of up to 500 MSPS (Mega Samples Per Second), enabling it to handle high-bandwidth signals with ease.
• Resolution: With a 16-bit resolution, this DAC ensures detailed and accurate digital-to-analog conversion, which is critical for applications where precision is paramount.
• Dual-Channel Output: The device features two DAC channels that can be used in parallel for I/Q modulation schemes or independently for separate signal paths, providing design flexibility.
• Integrated Interpolation Filters: It includes 2x, 4x, and 8x interpolation filters, reducing the data rate required on the input side and simplifying the digital interface.
• Complex Modulator: The onboard complex digital modulator supports various modulation schemes, making it suitable for advanced communication systems.
• Flexible Interface: The DAC5686IPZPG4 is equipped with an LVDS (Low-Voltage Differential Signaling) interface for high-speed data transfer while minimizing noise.

Applications

• Wireless Infrastructure (e.g., Base Stations for 3G, 4G LTE, and 5G)
• Medical Imaging Systems
• Test and Measurement Equipment
• High-Resolution Imaging Systems
• Aerospace and Defense Electronics

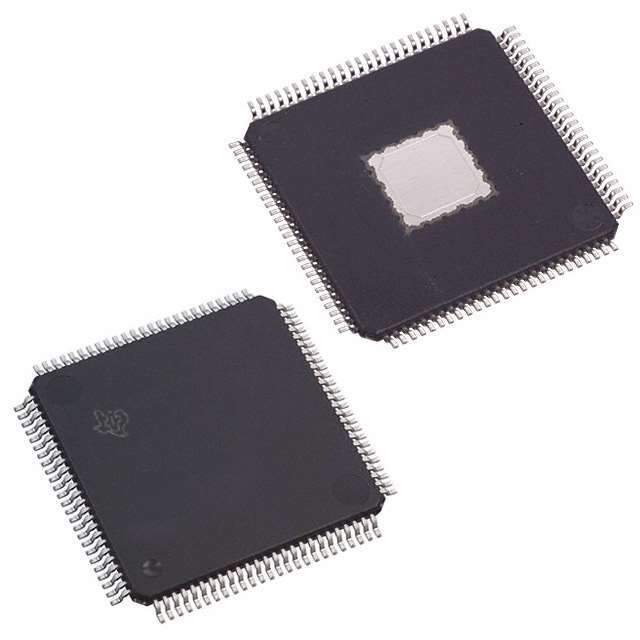

The DAC5686IPZPG4 comes in a compact 100-HTQFP (Heat Sink Thin Quad Flat Pack) package, which is conducive to space-constrained applications while also providing beneficial thermal characteristics. Its robust design and integrated features make it a versatile choice for engineers seeking a DAC that can deliver both high performance and reliability.

With the DAC5686IPZPG4, Texas Instruments continues its tradition of providing cutting-edge technology solutions that push the boundaries of digital-to-analog conversion, ensuring that your products can meet the stringent requirements of modern electronic systems.
