Same model may have multiple batches, images only for reference.

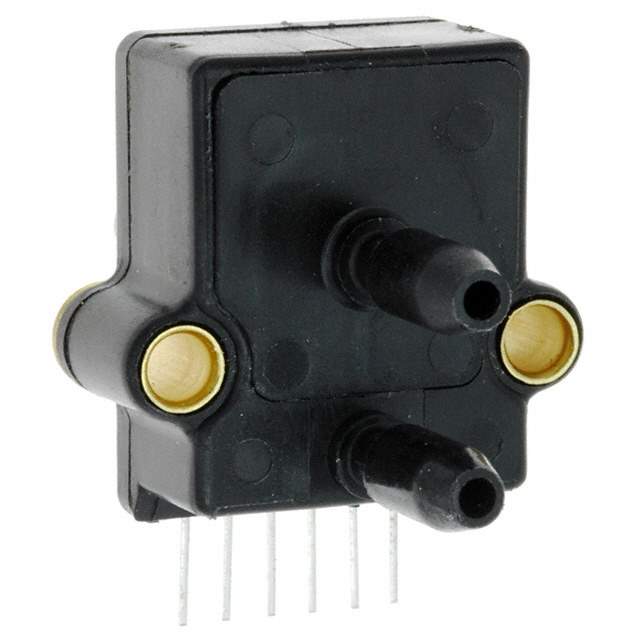

SCX30DN Real Image
Same model may have multiple batches, images only for reference.

SCX30DN

Part No SCX30DN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 30PSID
Datasheet
SCX30DN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Status Active
Pressure Type Differential
Operating Pressure 30 PSI (206.84 kPa)
Output Type Wheatstone Bridge
Output 0 mV to 90 mV (12V)
Accuracy ±1%
Supply Voltage - Operating 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 60 PSI (413.69 kPa)
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 316921-SCX30DN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SCX30DN CAD Model

Description

The SCX30DN is an electronic component manufactured by Honeywell Sensing and Productivity Solutions.

  • Supply and Demand Status: Balanced
  • Applications: Used in various applications in the electronic industry
  • Features: Temperature compensated and has an output range of 0mV to 90mV
  • Benefits: Reliable product that can be used in different electronic devices
