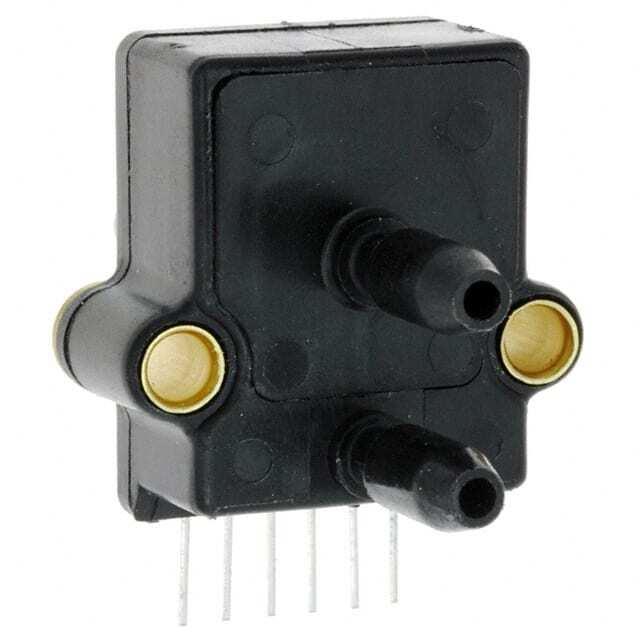

Same model may have multiple batches, images only for reference.
SCX01DNC
Same model may have multiple batches, images only for reference.

SCX01DNC

Part No SCX01DNC
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSID 0.19" .018V 6SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series SCX
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 18 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.19" (4.8mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 6-SIP
Supplier Device Package 6-SIP
Base Product Number SCX01
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846472-SCX01DNC
Ultra Librarian 3D Model Ultra Librarian SCX01DNC CAD Model

Description

The 846472-SCX01DNC is a pressure sensor/transducer from Honeywell's SCX series.

  • Application: Board Mount
  • Features: Temperature Compensated Output
  • Pressure Range: 1 PSI (6.89kPa)
  • Maximum Pressure: 20 PSI (137.9kPa)
  • Output Type: Wheatstone bridge
  • Output Range: 0mV to 18mV (12V supply)
  • Accuracy: ±1%
  • Supply Voltage: 20V
  • Package Style: 6-SIP
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
