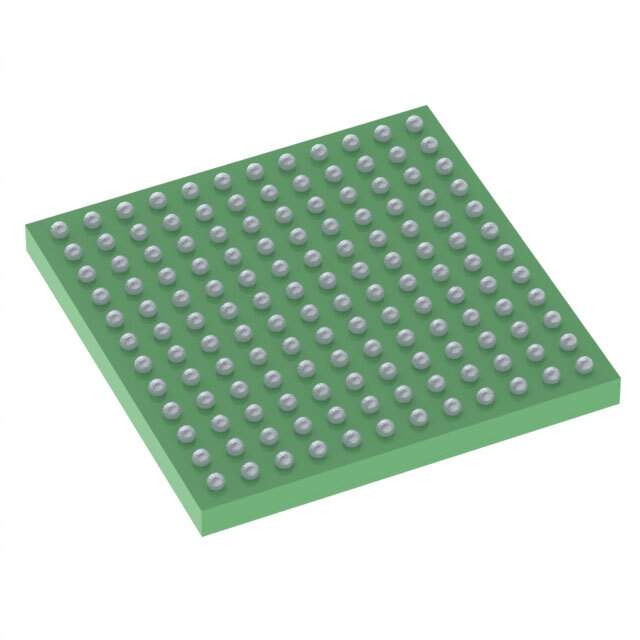

Product Overview: DAC38RF89IAAV from Texas Instruments

The DAC38RF89IAAV is a high-performance, dual-channel digital-to-analog converter (DAC) from Texas Instruments, designed to meet the demanding requirements of advanced radio frequency (RF) signal generation. This product is part of the wide portfolio of Texas Instruments' data converters that provide solutions for data acquisition systems, wireless infrastructure, and other complex applications where precision and speed are crucial.

Key Features

• High Resolution: The DAC38RF89IAAV boasts a 16-bit resolution, providing fine granularity and high precision in signal conversion.
• Wide Bandwidth: With a maximum sampling rate of 9 GSPS (Giga-Samples Per Second), this DAC supports a wide range of frequencies, making it suitable for multi-band transmitters and wideband communication systems.
• Dual-Channel: The inclusion of dual DAC channels allows for complex I/Q modulation schemes and supports MIMO (Multiple Input Multiple Output) technology, enhancing the performance of wireless communication systems.
• Integrated Features: It includes an on-chip phase-locked loop (PLL), digital up-converter (DUC), and other digital signal processing (DSP) blocks that simplify system design and reduce the need for external components.
• Programmable: The DAC38RF89IAAV is highly configurable through a serial peripheral interface (SPI), enabling customization for specific application requirements.
• Thermal Efficiency: Designed with power efficiency in mind, the DAC operates with reduced thermal footprints, ensuring reliability and longevity in high-performance systems.

Applications

The DAC38RF89IAAV is ideal for use in a variety of applications where high-speed, high-fidelity signal generation is needed. These include, but are not limited to:

• Wireless infrastructure (e.g., base stations for 5G, LTE)
• Test and measurement equipment
• High-speed data acquisition systems
• Phased array radar systems
• Electronic warfare and defense systems

Conclusion

The DAC38RF89IAAV from Texas Instruments is a robust, feature-rich digital-to-analog converter that delivers exceptional performance for RF applications. Its dual-channel design, coupled with a comprehensive set of integrated features, makes it a versatile choice for engineers looking to create sophisticated and reliable systems in the field of wireless communication and signal processing.
