The Texas Instruments CSD86360Q5D is a state-of-the-art power solution belonging to the NexFET™ Power Block product line. This high-efficiency, dual NexFET™ power MOSFET is designed to deliver exceptional performance for a wide range of applications, including synchronous buck converters and other power supply circuits.

Key Features

• Advanced Technology: The CSD86360Q5D utilizes TI's cutting-edge NexFET™ technology, which offers significant improvements in power density and efficiency compared to traditional MOSFETs.
• High Performance: With a continuous drain current (ID) of 40A, this power block is capable of handling high current requirements with ease.
• Low On-Resistance: The device features an ultra-low on-resistance (Rdson) of only 4.5 mΩ at Vgs = 10V, minimizing power losses and improving overall efficiency.

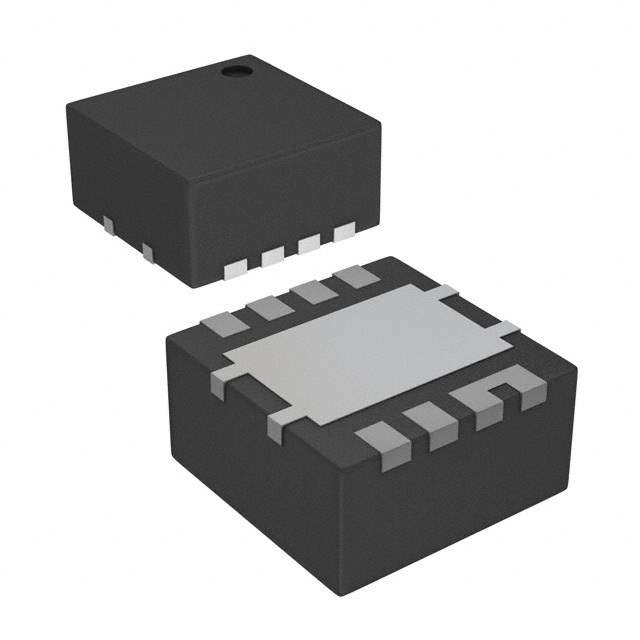

• Optimized Packaging: Housed in a compact 5mm x 6mm SON package, the CSD86360Q5D is ideal for space-constrained applications.
• Thermal Management: Its SON package with exposed PowerPAD™ ensures excellent thermal performance, allowing for better heat dissipation.

Applications

The versatility of the CSD86360Q5D makes it suitable for a broad array of applications, including but not limited to:

• High-density DC/DC converters
• Telecommunications and networking equipment
• Server and desktop power supplies
• Point-of-load (POL) modules
• Graphics cards and gaming consoles

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The CSD86360Q5D is no exception, offering dependable performance in a variety of environmental conditions. Its robust design ensures a long operational lifespan, making it a reliable choice for critical power management tasks.

Support and Resources

TI provides comprehensive support and resources for the CSD86360Q5D, including detailed datasheets, design tools, and technical documentation. Customers can also access TI's expert support team for any additional assistance required during design and implementation.
