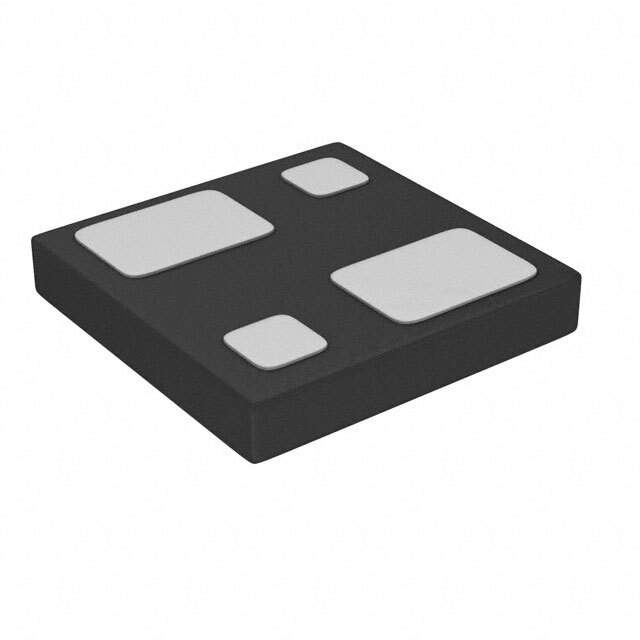

CSD85302L

Part No CSD85302L
Manufacturer Texas Instruments
Catalog FETs - Arrays
Description MOSFET 2N-CH 20V 5A / 20 V Dual N-Channel NexFET Power MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Reel
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Standard
Gate Charge (Qg) (Maximum) at Vgs 7.8nC at 4.5V
Power - Max 1.7W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 4-XFLGA
Supplier Device Package 4-Picostar (1.31x1.31)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800977-CSD85302L
Ultra Librarian 3D Model Ultra Librarian CSD85302L CAD Model

Description

The CSD85302L is a high-performance, dual N-Channel NexFET™ power MOSFET designed by Texas Instruments. This state-of-the-art component is ideal for applications requiring efficient power management and high-speed switching. With its compact footprint, the CSD85302L is a perfect fit for space-constrained applications.

Key Features

  • Low On-Resistance: The device offers ultra-low on-resistance (RDS(on)) which enhances its efficiency and reduces conduction losses, making it an energy-efficient choice for designers.
  • High-Speed Switching: Designed for fast switching applications, the CSD85302L improves performance in circuits where switching speed is critical.
  • Dual MOSFET Configuration: The integration of two N-Channel MOSFETs in one package simplifies PCB layout and reduces component count, which can lead to cost savings and a more reliable end product.
  • Compact Size: Housed in a small 3mm x 3mm SON package, this device allows for high-density board designs, making it ideal for portable electronics where space is at a premium.
  • Thermal Management: The CSD85302L's package is designed for excellent thermal performance, ensuring reliability even under high power operation.

Applications

The versatility of the CSD85302L allows it to be used in a wide range of applications. Some of the common applications include:

  • DC/DC Converters
  • Power Supply Load Switches
  • Motor Control Circuits
  • Battery Management Systems
  • Point-of-Load (POL) Modules

Quality and Support

Texas Instruments is known for its commitment to quality and long-term reliability. The CSD85302L is no exception and is supported by Texas Instruments' comprehensive technical resources, including datasheets, application notes, and design tools. This ensures that engineers can confidently select the CSD85302L for their critical design projects, knowing they have the backing of TI's industry-leading support.
