Overview of Texas Instruments CD74HC688NSR

The Texas Instruments CD74HC688NSR is a high-speed CMOS logic 8-bit magnitude comparator designed for use in systems that require fast decision-making capabilities. This integrated circuit is part of the HC family and offers a high degree of functionality and reliability for a wide range of applications, including data processing, control systems, and automated test equipment.

Key Features

• Logic Type: 8-Bit Magnitude Comparator
• Supply Voltage Range: 2V to 6V, accommodating a variety of logic levels and providing flexibility for both battery-powered and traditional power supply designs.
• High-Speed Performance: Typical propagation delay times as low as 13ns, ensuring rapid processing and comparison of data.
• Low Power Consumption: CMOS technology contributes to reduced power usage, making the CD74HC688NSR suitable for energy-sensitive applications.

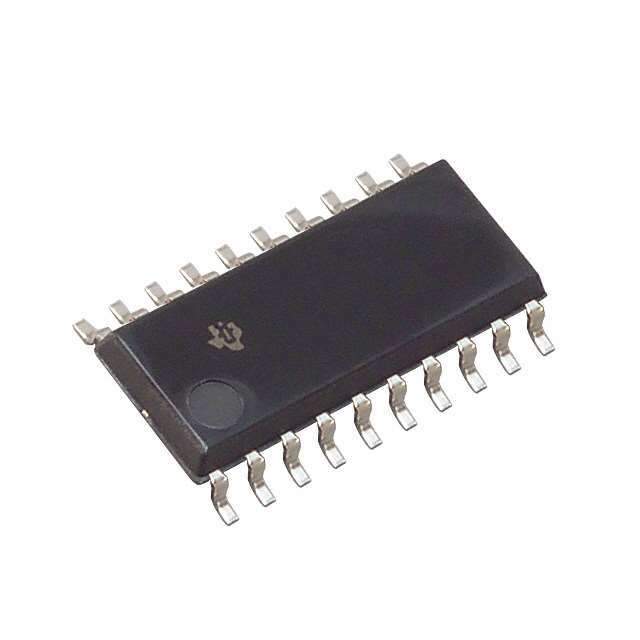

• Package: Comes in an SOP (Small Outline Package) with a 20-pin configuration, providing a compact footprint for space-constrained designs.
• Temperature Range: Operational temperature range from -55°C to 125°C, allowing performance in extreme environmental conditions.

Functional Description

The CD74HC688NSR compares two 8-bit words and provides an output that indicates the equality or inequality of the compared words. The device has two sets of eight inputs, labeled A0 to A7 and B0 to B7, and one output labeled 'EQUAL'. When the compared words match exactly, the 'EQUAL' output goes low, signaling that the two 8-bit inputs are the same. This functionality is essential in systems where data integrity and accuracy are critical.

Applications

Due to its high-speed comparison capabilities and low power consumption, the CD74HC688NSR is ideal for applications such as:

• Data processing systems where rapid comparison of information is required.
• Control systems that need to make decisions based on precise criteria.
• Automated test equipment for validation and quality assurance processes.
• Communication systems where signal or data integrity must be continuously monitored.

With its robust design and versatile features, the Texas Instruments CD74HC688NSR is a valuable component for any application requiring reliable and efficient digital comparison.
