CC1070RSQR

Part No CC1070RSQR
Manufacturer Texas Instruments
Catalog RF Transmitters
Description IC RF TX FOR NARROWBAND 20-QFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Frequency 402MHz to 470MHz, 804MHz to 940MHz
Applications ISM
Modulation or Protocol ASK, FSK, GFSK, OOK
Data Rate (Max) 153.6 kBaud
Power - Output -20dBm to 10dBm
Current - Transmitting 33.1mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage - Operating 2.3 V to 3.6 V
Temperature Range - Operating -40°C to 105°C

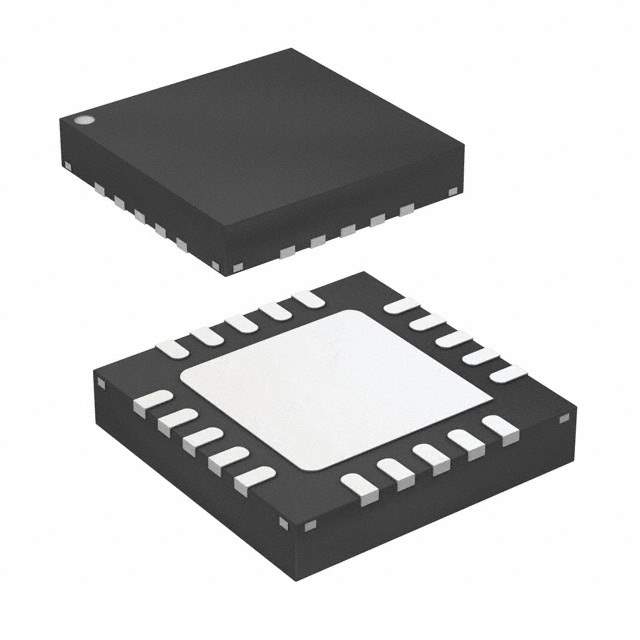

Dimension 20-QFN
Win Source Part Number 012743-CC1070RSQR
Family Name CC1070
Introduction Date October 30, 2003
ECCN EAR99
Country of Origin Malaysia, RepublicofKorea
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CC1070RSQR CAD Model

Description

CC1070RSQR Transceiver Description

The CC1070RSQR is an RF transceiver that combines high performance with power efficiency. Designed for versatile use, it supports a broad range of wireless applications, making it an ideal choice for both industrial and consumer projects.

Features and Benefits

  • Extremely low power consumption ideal for battery-operated devices.
  • Advanced modulation capabilities for high data throughput.
  • Easy integration into existing systems with its user-friendly interface.
  • Durable construction for use in challenging environments.
  • Available in a compact package to save space.

Applications

  • Smart home devices
  • Industrial automation
  • Medical equipment
  • Wireless sensor networks
  • Telematics solutions

With its efficient and reliable performance, the CC1070RSQR is instrumental in creating innovative wireless solutions.
