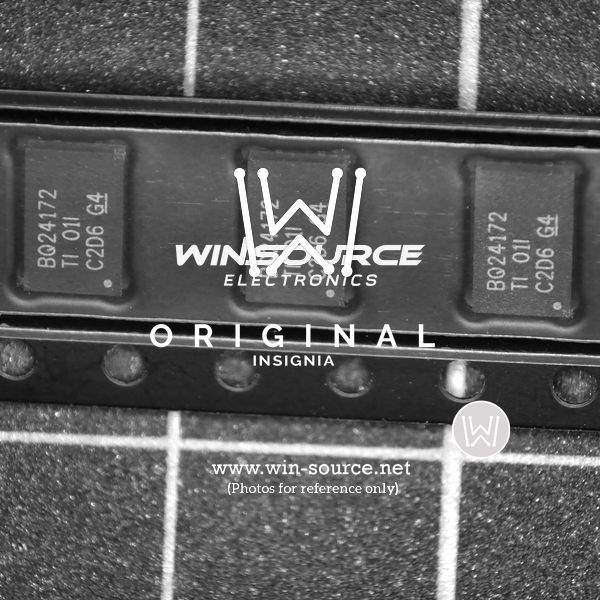

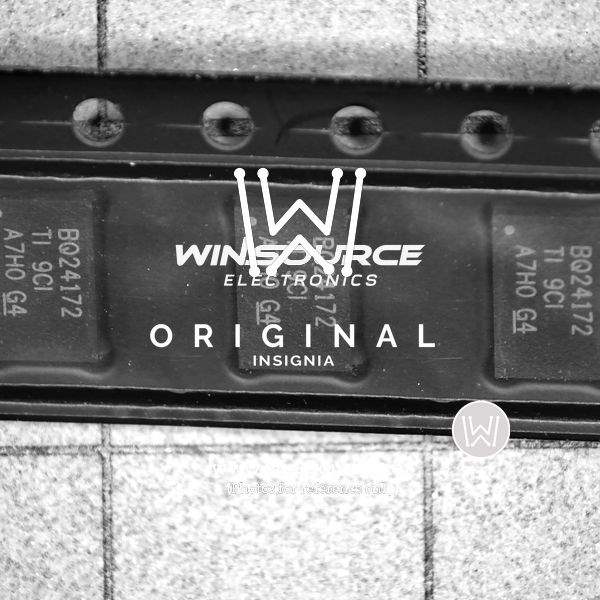

BQ24172RGYR Real Image BQ24172RGYR real image2646 BQ24172RGYR Real Image1 BQ24172RGYR Real Image2
Same model may have multiple batches, images only for reference.
BQ24172RGYR Real Image BQ24172RGYR real image2646 BQ24172RGYR Real Image1 BQ24172RGYR Real Image2
BQ24172RGYR Real Image BQ24172RGYR real image2646 BQ24172RGYR Real Image1 BQ24172RGYR Real Image2
Same model may have multiple batches, images only for reference.

BQ24172RGYR

Part No BQ24172RGYR
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description Switching Battery Charger Li-FePO4/Li-Ion/Li-Pol/NiMH 4000mA 2.1V to 15.5V 24-Pin VQFN EP T/R / IC BATT CHRGR LIION/POLY 24VQFN
Datasheet
BQ24172RGYR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Battery Chemistry Lithium-Ion/Polymer
Number of Cells 1 to 3
Current - Charging Constant - Programmable
Programmable Features Current
Fault Protection Over Current, Over Temperature, Over Voltage
Charge Current - Max 4A
Battery Pack Voltage 2.1V
Maximum Supply Voltage 17V
Temperature Range - Operating -40°C to 85°C (TA)

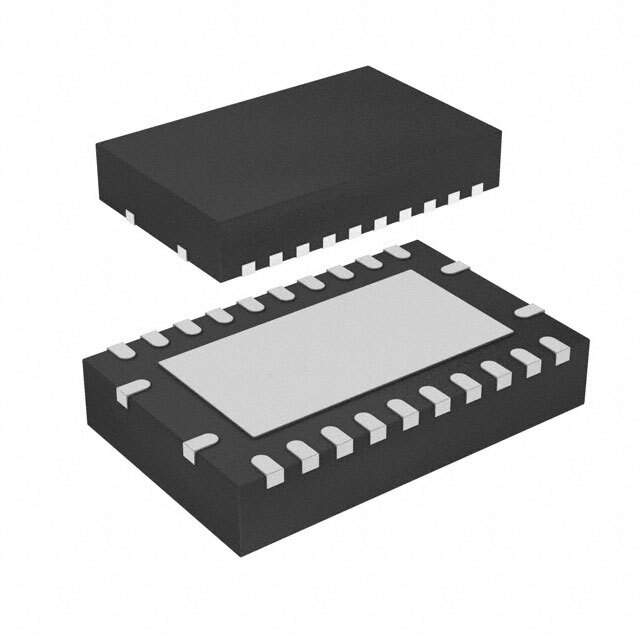

Case / Package 24-VQFN (5.5x3.5)
Win Source Part Number 108990-BQ24172RGYR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BQ24172
Introduction Date April 01, 2010
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian BQ24172RGYR CAD Model

Description

The BQ24172RGYR sets a standard in adaptive charging for lithium batteries, providing a comprehensive solution with a focus on safety and efficiency.

Features and Benefits

  • Adaptive Charging: Optimizes charging cycles based on battery condition.
  • High Power Density: Delivers powerful charging without excessive heat generation.
  • Battery Protection: Prevents overcharging and excessive discharge.
  • Seamless Integration: Easy to implement in diverse system architectures.

Applications and Projects

  • Universal battery charging docks
  • High-performance laptops
  • Portable gaming consoles
  • UPS systems for critical applications

Leverage the BQ24172RGYR to achieve sophisticated and flexible battery management with unmatched safety and efficiency.
