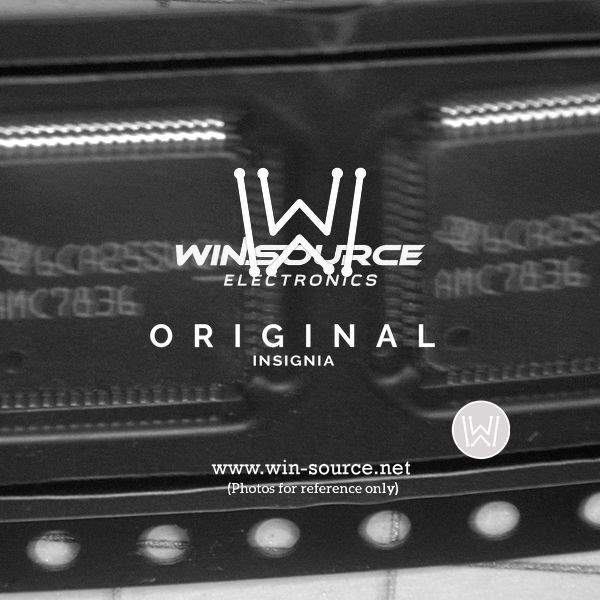

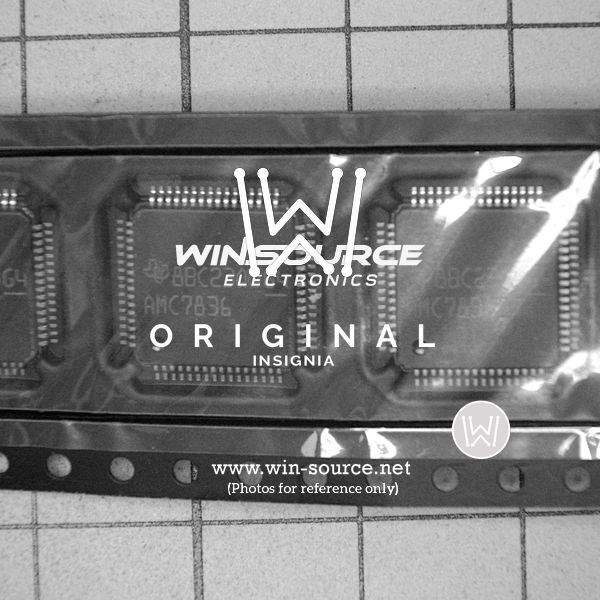

Product Overview: AMC7836IPAPR from Texas Instruments

The AMC7836IPAPR is a highly integrated, low-power, analog monitoring and control solution developed by Texas Instruments (TI), one of the global semiconductor leaders. This advanced mixed-signal device is designed to cater to a wide range of applications, including industrial automation, power management systems, and medical equipment.

Key Features and Benefits

• Multiple Analog Inputs: The AMC7836IPAPR includes 16 single-ended or 8 differential inputs, making it versatile for various analog signal measurements.
• 12-bit Analog-to-Digital Converters (ADCs): High precision ADCs ensure accurate measurement of analog signals, which is critical for sensitive applications.
• 8 Digital-to-Analog Converters (DACs): The device features 8 channels of 12-bit DACs, providing precise output for control applications.
• Programmable Gain Amplifiers (PGAs): Integrated PGAs offer selectable gains, enhancing the flexibility and dynamic range of input signal measurement.
• Temperature Sensor: An onboard temperature sensor allows for monitoring system temperature, ensuring reliable operation under varying conditions.
• Flexible Interface: Communication with the AMC7836IPAPR is made simple through a serial peripheral interface (SPI), which is compatible with a wide range of microcontrollers and processors.
• Power Supply: The device operates on a 2.7V to 5.5V supply voltage, accommodating various power environments.
• Extended Temperature Range: With an operational temperature range from -40°C to +85°C, the AMC7836IPAPR is suited for industrial-grade applications.

Applications

The AMC7836IPAPR is ideal for applications that require precise monitoring and control of analog signals. Its versatile input and output options, along with its integrated features, make it a perfect fit for:

• Industrial control systems
• Automated test equipment
• Data acquisition systems
• Battery management systems
• Medical monitoring devices

TI's AMC7836IPAPR is a comprehensive solution for designers seeking to integrate multiple analog functionalities into their systems with minimal footprint and power consumption. Its robust design and high level of integration help streamline product development, reduce system complexity, and accelerate time-to-market.
