The ADC128S022CIMT/NOPB is a precision, low-power, 12-bit analog-to-digital converter (ADC) brought to you by Texas Instruments. It is designed to operate with a single supply ranging from 2.7V to 5.25V, making it suitable for a wide range of applications in consumer electronics, medical devices, and industrial control systems.

Key Features

• Resolution: 12-bit resolution provides a fine level of detail in the analog signal conversion process, allowing for high precision measurements.
• Channels: The device features 8 multiplexed channels, enabling it to handle multiple signal inputs with one ADC, saving space and simplifying design.
• Sampling Rate: It offers a sampling rate of up to 50 kSPS (kilo samples per second), which is well-suited for both slow and moderately fast signals.
• Interface: A simple, SPI-compatible serial interface facilitates easy connection to microcontrollers and other digital systems.
• Power Consumption: With its low-power consumption, the ADC128S022CIMT/NOPB is ideal for battery-powered and energy-efficient applications.

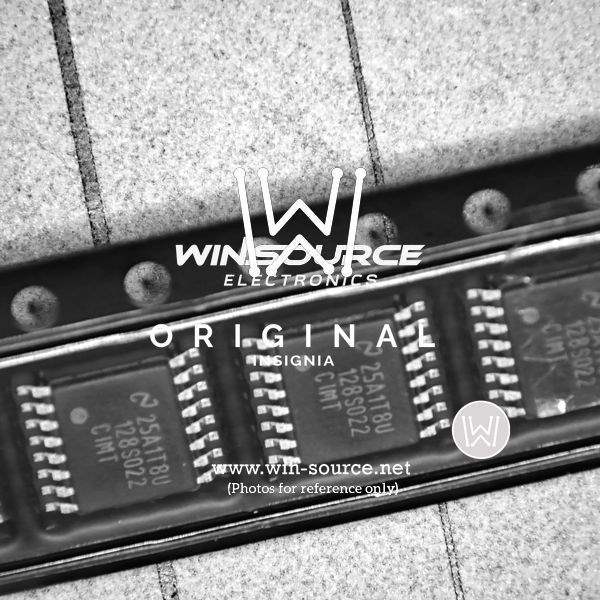

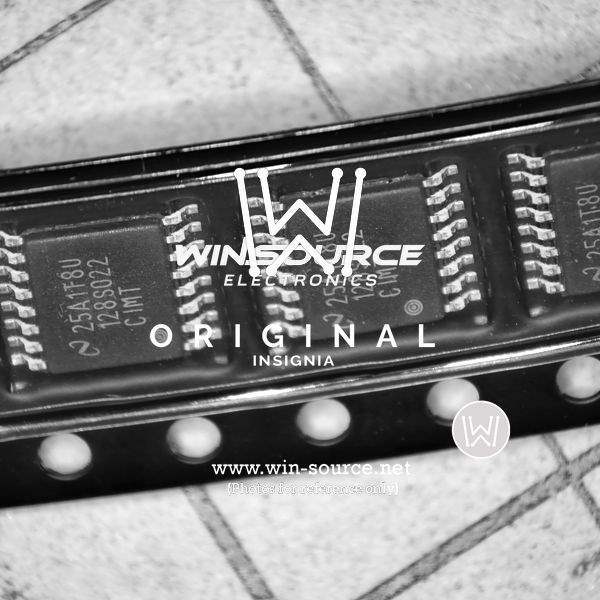

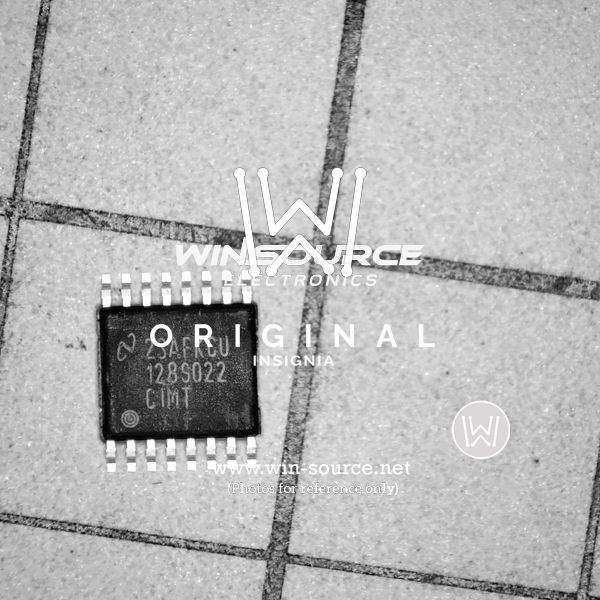

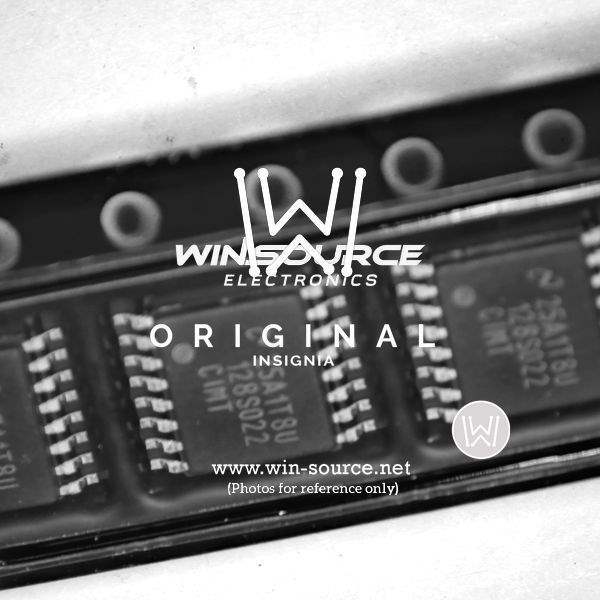

• Package: The device comes in a 16-lead TSSOP (Thin Shrink Small Outline Package) that is compact and favorable for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range of -40°C to +105°C, ensuring reliable performance in harsh environments.

Applications

The ADC128S022CIMT/NOPB is versatile and can be used in various applications such as:

• Data acquisition systems
• Battery-operated devices
• Medical instruments
• Industrial automation and process control
• Portable instrumentation

Quality and Reliability

This product is offered in a lead-free, RoHS-compliant package, reflecting Texas Instruments' commitment to environmental sustainability. It is also characterized for moisture sensitivity level 1 (MSL1), ensuring long-term reliability when exposed to ambient moisture during operation and storage.

Ordering Information

The ADC128S022CIMT/NOPB is available for order, and its nomenclature reflects the product's status as a non-lead (NOPB) component, indicating its compliance with current environmental standards.
