Products specifications

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete
Type Non-Isolated PoL Module
Voltage - Input (Minimum) 7V
Voltage - Input (Maximum) 15V
Voltage - Output 1 3.3V
Current - Output (Maximum) 2A
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Style Through Hole, Right Angle
Manufacturer Package 3-SIP Module
Parts Dimension 0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Family Part Number 78HT233
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1133707-78HT233HC
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 78HT233HC CAD Model

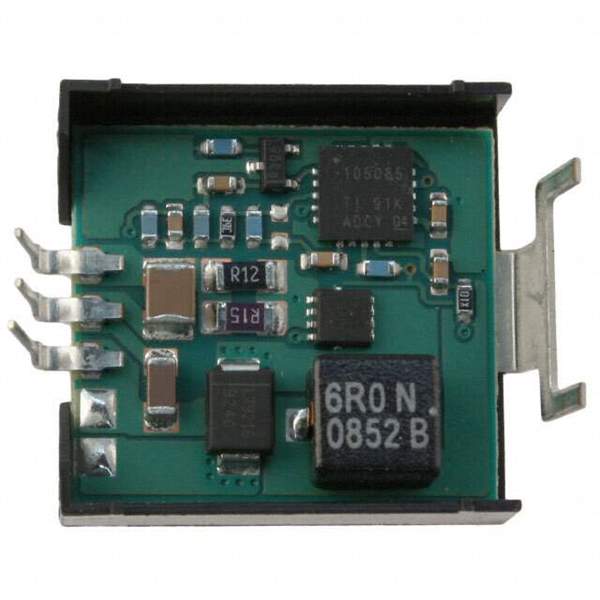

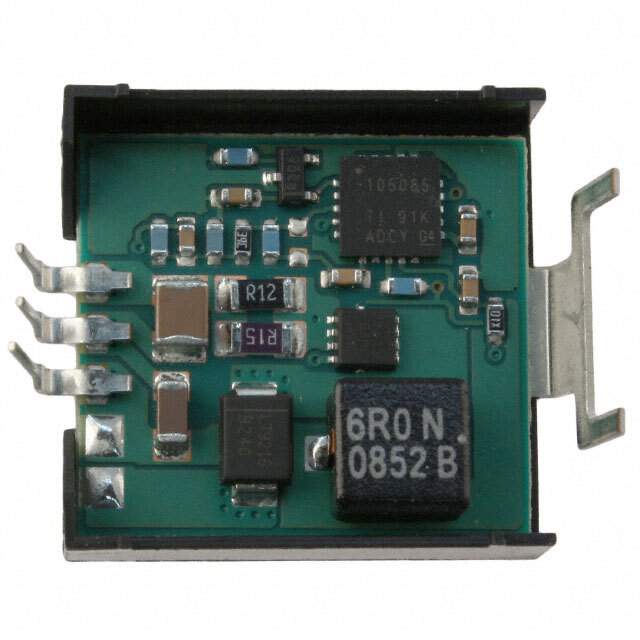

Description

The 78HT233HC is a high-performance integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor design and production. This particular model is part of Texas Instruments' extensive range of power management solutions and is specifically engineered to meet the rigorous demands of modern electronic applications.

Key Features

  • High Efficiency: The 78HT233HC is optimized for high efficiency, which is crucial for minimizing heat generation and power loss, thereby extending the life of electronic products.
  • Voltage Regulation: This device provides stable voltage regulation, ensuring consistent performance and reliability for sensitive electronic components that require precise power delivery.
  • Wide Input Voltage Range: It supports a broad range of input voltages, making it versatile for use in various applications and compatible with multiple power sources.
  • Thermal Protection: The 78HT233HC is equipped with thermal protection features to prevent overheating, safeguarding the IC and the device it powers.
  • Low Dropout: It has a low dropout voltage, which enhances its efficiency and allows operation at lower input voltages relative to the output.

Applications

The versatility of the 78HT233HC makes it suitable for a wide array of applications. It is commonly used in:

  • Consumer Electronics
  • Telecommunications Equipment
  • Computing Devices
  • Industrial Systems
  • Automotive Technologies

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the 78HT233HC is no exception. It undergoes rigorous testing and quality control measures to ensure it meets the high standards expected by consumers and professionals alike. With Texas Instruments' expertise in power management integrated circuits, users can trust the 78HT233HC to deliver exceptional performance and durability.
