Product Overview: 74ALVCH32245ZKER

The 74ALVCH32245ZKER is a high-performance, 32-bit bus transceiver from Texas Instruments, designed with a low-voltage CMOS technology. It is part of the ALVCH series, which is known for its advanced drive capabilities and robustness in handling high-speed data transmission. This product is particularly suitable for applications that require bidirectional communication between two buses of data.

Key Features

• High-Speed Data Transfer: The device supports data transfer rates that are consistent with high-speed memory and microprocessors, making it an excellent choice for interfacing with modern digital systems.
• Low-Voltage Operation: It operates at a nominal voltage of 2.5V or 3.3V, which helps in reducing the power consumption of the system it is integrated into, making it ideal for power-sensitive applications.
• Bus-Hold Data Inputs: The inputs include a bus-hold feature, which eliminates the need for external pull-up or pull-down resistors and ensures that the inputs do not float when they are not being driven.
• Wide Bus Interface: With a 32-bit interface, the 74ALVCH32245ZKER can handle wide data paths, offering efficient data flow and reducing the number of components needed for bus expansion in a system.
• Flow-Through Architecture: The device's design optimizes the PCB layout, making it easier to manage signal integrity, particularly in high-speed applications.

Applications

• High-speed data transfer systems
• Memory interfacing
• Microprocessor interface
• Communication systems
• Data acquisition systems

Quality and Reliability

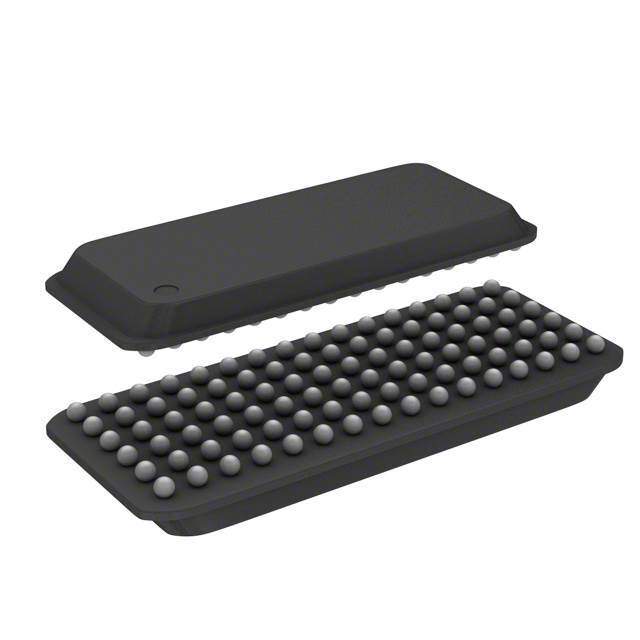

Texas Instruments is known for its commitment to quality, and the 74ALVCH32245ZKER is no exception. It is built to meet the rigorous standards of the industry, ensuring high reliability and performance in the most demanding applications. The device is available in a 96-ball ZKER package, which is designed for surface-mount technology and is RoHS compliant, adhering to environmental standards.

With its combination of high-speed performance, low-power operation, and wide bus interface, the 74ALVCH32245ZKER from Texas Instruments stands out as a versatile and efficient solution for modern digital interfacing challenges.
