Same model may have multiple batches, images only for reference.

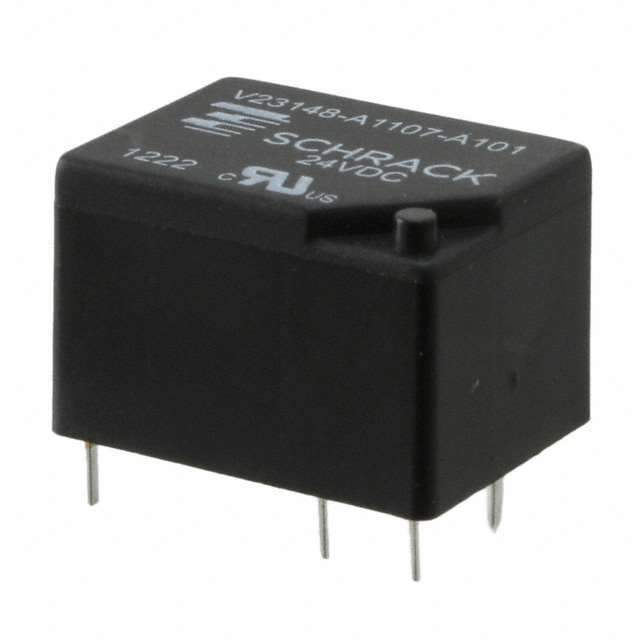

V23148-A0007-A101 Real Image
Same model may have multiple batches, images only for reference.

V23148-A0007-A101

Part No V23148-A0007-A101
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23148, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 7 A
Switching Voltage 400VAC - Max
Coil Current 18.8 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 5 ms
Release Time 3 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.28 kOhms
Base Product Number V23148
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315977-V23148-A0007-A101
Ultra Librarian 3D Model Ultra Librarian V23148-A0007-A101 CAD Model

Description

The TE Connectivity Potter & Brumfield V23148-A0007-A101 is a power relay that features a coil voltage of 24VDC and a contact rating of 7A. Bold the product name V23148-A0007-A101 and manufacturer TE Connectivity.

  • Coil Voltage: 24VDC
  • Contact Rating: 7A
  • Relay Type: SPDT (1 Form C)
  • Application: General-purpose
  • Package: Through-hole
  • Must Operate Voltage: 16.8VDC
  • Must Release Voltage: 2.4VDC
  • Operate Time: 5ms
  • Release Time: 3ms
  • Switching Voltage: 400VAC - Max
  • Operating Temperature: -25°C to 70°C
