Same model may have multiple batches, images only for reference.

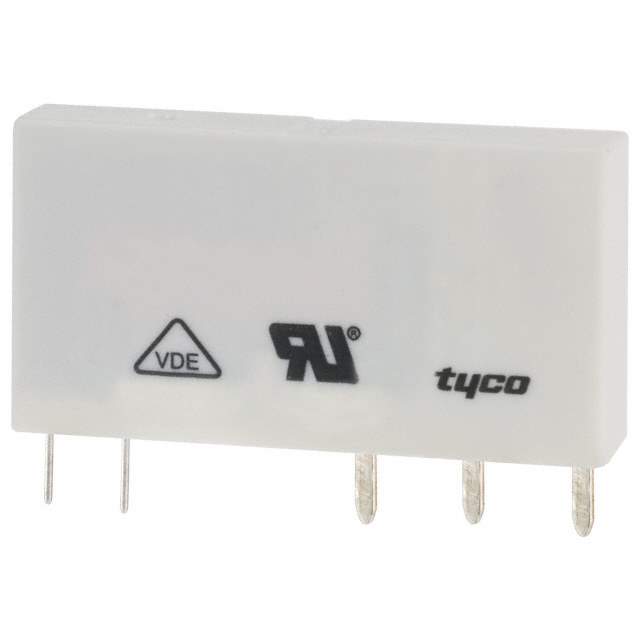

V23092-A1012-A301 Real Image
Same model may have multiple batches, images only for reference.

V23092-A1012-A301

Part No V23092-A1012-A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 12V
Datasheet
V23092-A1012-A301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 14.2mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 12ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 170 mW
Coil Resistance 848 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 037420-V23092-A1012-A301
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23092-A1012-A301 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a high popularity electronic component with a part number of 037420-V23092-A1012-A301.

  • Feature: sealed-fully
  • Contact Form: SPDT (1 Form C)
  • Mounting Style: through hole
  • Termination Style: PC pin
  • Coil Voltage: 12VDC
  • Coil Resistance: 848 Ohms
  • Coil Current: 14.2mA
  • Contact Rating (Current): 6A
  • Switching Voltage: 400VAC - Max
  • Temperature Range: -40°C to 85°C
  • Supply and demand status: limited
