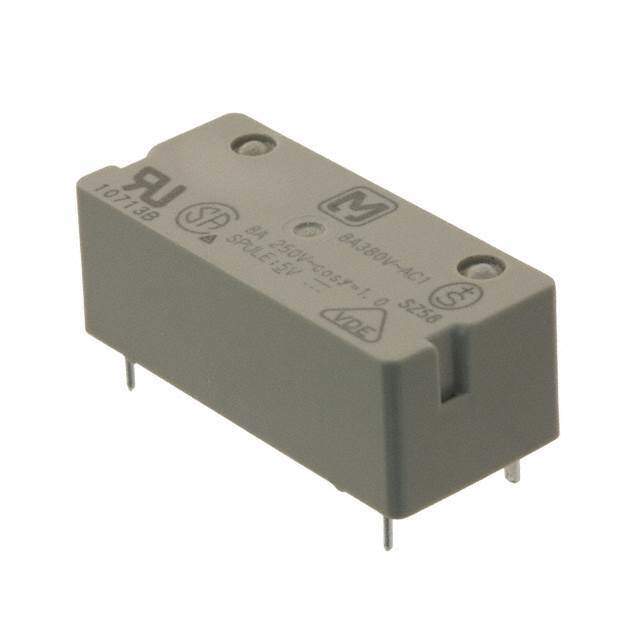

ST1-DC5V-F Real Image
Same model may have multiple batches, images only for reference.

ST1-DC5V-F

Part No ST1-DC5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPST 8A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 47.6mA
Coil Voltage 5VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Turn On Voltage (Max) 4 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 240 mW
Coil Resistance 105 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 125317-ST1-DC5V-F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ST1-DC5V-F CAD Model

Description

The Panasonic Electric Works ST1-DC5V-F is a general-purpose relay designed for through-hole mounting.

  • Coil Voltage: 5VDC
  • Coil Resistance: 105 Ohms
  • Coil Current: 47.6mA
  • Coil Power: 240mW
  • Contact Form: DPST-NO/NC (1 Form A and B)
  • Contact Rating: 8A
  • Switching Voltage: 380VAC, 250VDC
  • Features: Fully sealed
  • Operating Temperature Range: -40°C to 60°C
  • Market Status: Active
  • Popularity: Medium
  • Package Quantity: 50
