Same model may have multiple batches, images only for reference.

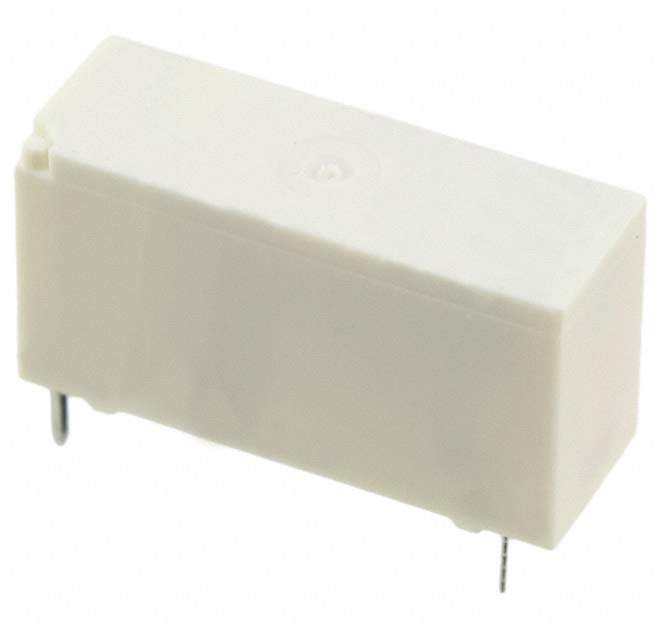

V23061-A1007-A402 Real Image
Same model may have multiple batches, images only for reference.

V23061-A1007-A402

Part No V23061-A1007-A402
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V
Datasheet
V23061-A1007-A402 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10.6mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.3 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 254 mW
Coil Resistance 2.27 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 043544-V23061-A1007-A402
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23061-A1007-A402 CAD Model

Description

This general-purpose relay from TE Connectivity Potter & Brumfield Relays is a reliable and high-quality component for your electronic projects.

  • Coil Voltage: 24VDC
  • Contact Rating: 8A
  • Insulation: Class A
  • Sealed: Fully sealed
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: Through-Hole
  • Operate Time: 10ms
  • Release Time: 5ms
  • Switching Voltage: 400VAC - Max
  • Turn-On Voltage: 16.3VDC (Max)
  • Turn-Off Voltage: 2.4VDC (Min)
  • Coil Resistance: 2.27 kOhms
  • Coil Current: 10.6mA
  • Relay Type: Non-Latching
  • Coil Power: 254mW
  • Temperature Range: -40°C to 85°C
  • Packaging: Tube/Rail
  • Popularity: Medium
  • Supply and Demand Status: Limited
