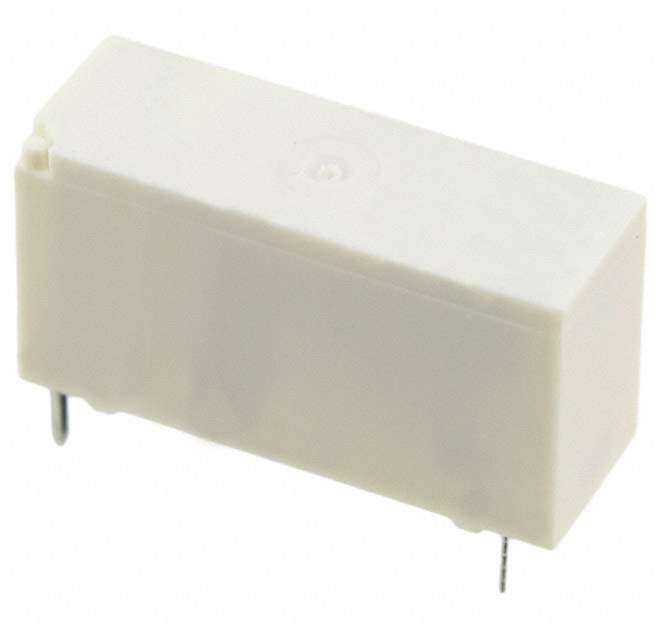

V23061-A1005-A502 Real Image
Same model may have multiple batches, images only for reference.

V23061-A1005-A502

Part No V23061-A1005-A502
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 12V
Datasheet
V23061-A1005-A502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.2 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 221 mW
Coil Resistance 652 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 397106-V23061-A1005-A502
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23061-A1005-A502 CAD Model

Description

The 397106-V23061-A1005-A502 is a SPST-NO (1 Form A) general-purpose relay from TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 12VDC
  • Coil Resistance: 652 Ohms
  • Contact Rating (Current): 8A
  • Switching Voltage: 400VAC - Max
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Suitable Applications: Variety of applications
