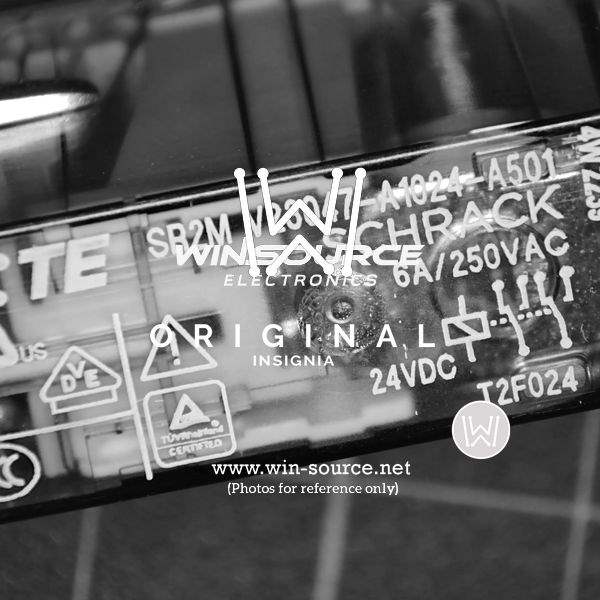

V23047-A1024-A501 Real Image V23047-A1024-A501 Real Image1 V23047-A1024-A501 Real Image2
Same model may have multiple batches, images only for reference.
V23047-A1024-A501 Real Image V23047-A1024-A501 Real Image1 V23047-A1024-A501 Real Image2
V23047-A1024-A501 Real Image V23047-A1024-A501 Real Image1 V23047-A1024-A501 Real Image2
Same model may have multiple batches, images only for reference.

V23047-A1024-A501

Part No V23047-A1024-A501
Manufacturer TE Connectivity
Catalog Electronic Wholesale
Description General Purpose Relays | RELAY SAFETY DPDT 6A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Features Sealed - Fully
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Coil Current 29.2mA
Coil Power 700mW
Coil Resistance 823 Ohms
Manufacturer Pack Quantity 20
MSL Level Not Applicable
Win Source Part Number 1278814-V23047-A1024-A501
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V23047-A1024-A501 CAD Model

Description

The V23047-A1024-A501 is a DPDT (2 Form C) sealed relay with a coil voltage of 24VDC.

  • Coil Resistance: 823 ohms
  • Coil Current: 29.2mA
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Contact Rating: 6A
  • Switching Voltage: 400VAC - Max
  • Coil Power: 700mW
  • Mounting: Through-hole
  • Temperature Range: -25°C to 70°C
  • Manufacturer Pack Quantity: 20
  • Supply and Demand Status: Limited
