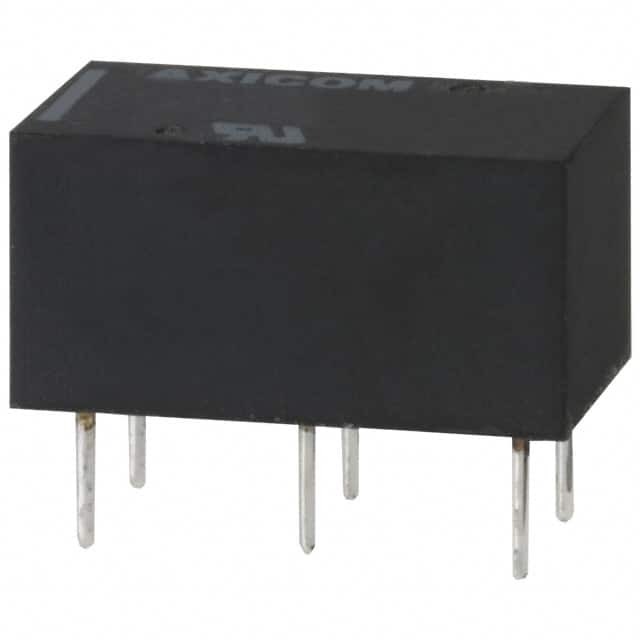

V23026A1004B201 TE Connectivity
Same model may have multiple batches, images only for reference.

V23026A1004B201

Part No V23026A1004B201
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 24VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23026, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1 A
Switching Voltage 150VAC, 125VDC - Max
Coil Current 5.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 2 ms
Release Time 2 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au)
Relay Type General Purpose
Coil Resistance 4.5 kOhms
Base Product Number V23026
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names PB284,1-1393774-2
Standard Package 40
Win Source Part Number 1012439-V23026A1004B201
Ultra Librarian 3D Model Ultra Librarian V23026A1004B201 CAD Model

Description

The V23026A1004B201 is a general-purpose signal relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Type: SPDT (1 Form C) relay
  • Contact Rating: 1A
  • Switching Voltage: 150VAC, 125VDC
  • Coil Voltage: 24VDC
  • Coil Resistance: 4.5 kOhms
  • Operate Time: 2ms
  • Release Time: 2ms
  • Component: Through-hole
  • Standard Package: 40
