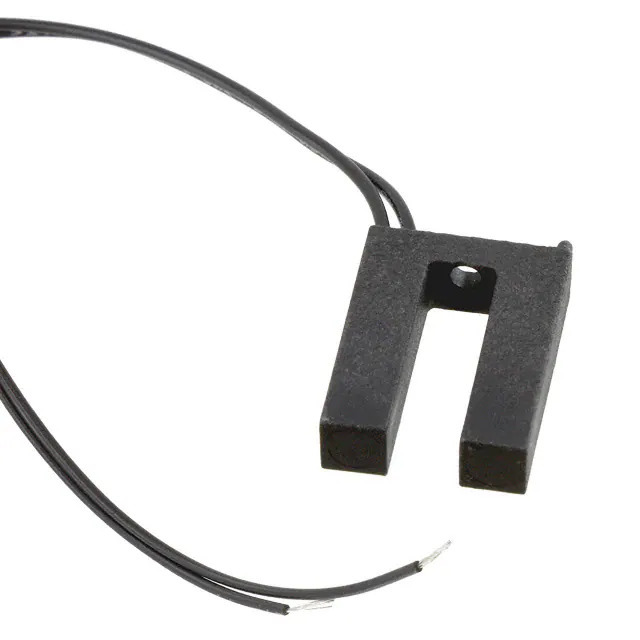

Same model may have multiple batches, images only for reference.
59085-040 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59085-040

Part No 59085-040
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NC W LEADS
Datasheet
59085-040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59085
Package Bulk
Product Status Active
Type Reed Switch
Output Type SPST-NC
Actuator Material Magnet
Termination Style Wire Leads
Voltage - Supply -
Must Operate 2.54mm
Must Release 6.35mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Module, Wire Leads, Slot Type
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1375878-59085-040
Ultra Librarian 3D Model Ultra Librarian 59085-040 CAD Model

Description

The 1375878-59085-040 is a magnetic sensor module from Littelfuse Inc.'s 59085 series.

  • Sensing Element: Reed switch
  • Output Type: SPST-NC
  • Package: Slot-type module
  • Termination: Wire leads
  • Operating Temperature: -40°C to 105°C
  • REACH: Compliant
