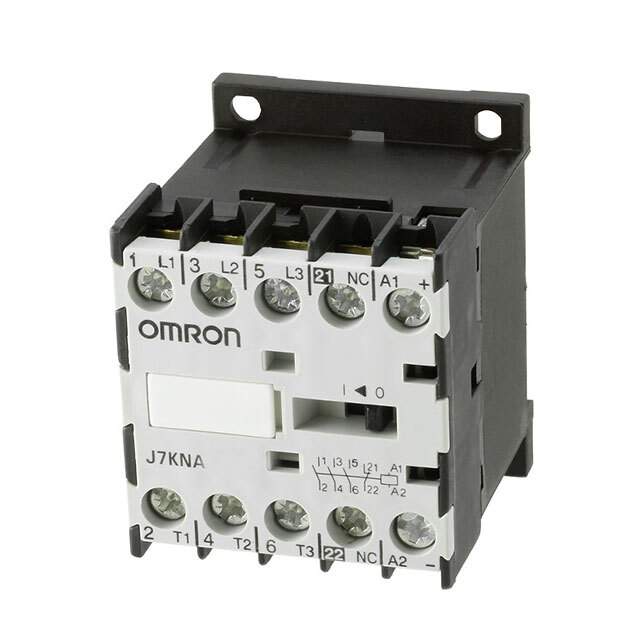

J7KNA-12-01 24VS Real Image
Same model may have multiple batches, images only for reference.

J7KNA-12-01 24VS

Part No J7KNA-12-01 24VS
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR 3PST 12A 24V /
Datasheet
J7KNA-12-01 24VS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr Omron Automation and Safety
Series J7KNA
Package Bulk
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 24VDC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Features Diode
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 60°C
Base Product Number J7KNA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0045
Other Names Z5403,J7KNA-12-01 24VS-ND,J7KNA120124VS
Standard Package 1
Win Source Part Number 1044284-J7KNA-12-01 24VS
Ultra Librarian 3D Model Ultra Librarian J7KNA-12-01 24VS CAD Model

Description

The J7KNA-12-01 24VS is a 3PST-NO (3 Form A) contact form relay that is designed to provide high-performance and reliability.

  • Contact Form: 3PST-NO (3 Form A)
  • RoHS: Compliant
  • Diode: Yes
  • Manufacturer: Omron Automation and Safety
  • Category: Contactors (Electromechanical)
  • Mounting: Chassis Mount, DIN Rail
  • Termination Style: Screw Terminal
