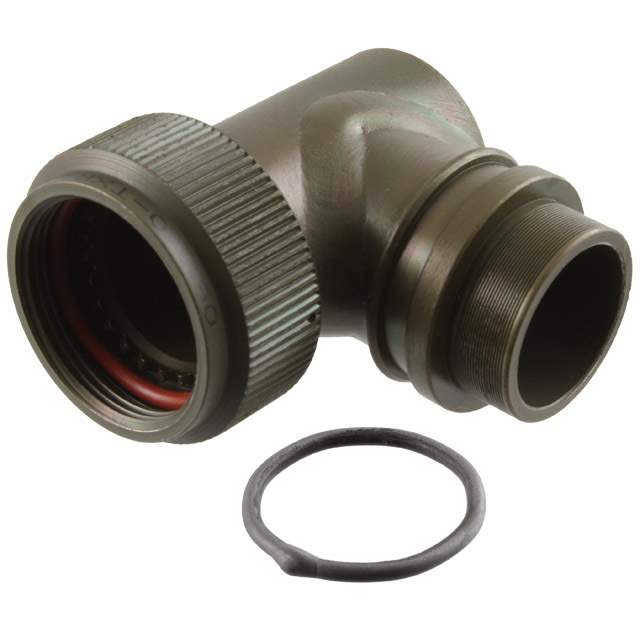

TXR40AB90-1410AI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB90-1410AI

Part No TXR40AB90-1410AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 15D OLIVE  /  Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 1.142" (29.00mm)
Shell Size - Insert 15, D
Thread Size M22x1
Cable Exit 90°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB90
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names A144710,TXR40AB901410AI,A101217,A101217-ND,311611-000,TXR40AB90-1410AI-ND
Standard Package 1
Win Source Part Number 1141647-TXR40AB90-1410AI
Ultra Librarian 3D Model Ultra Librarian TXR40AB90-1410AI CAD Model

Description

The TXR40AB90-1410AI is a backshell heat shrink adapter from TE Connectivity Aerospace, Defense and Marine.

  • Designed for: MIL-DTL-38999 Series III, IV
  • Material: aluminum alloy with cadmium plating
  • Shielded: Yes
  • Ingress Protection: environment resistant
  • Features: Tinel lock
  • Included: 4 pieces - 1 backshell, 1 braid, 1 O-ring, and 1 Tinel ring
  • Cable Exit: 90 degrees
  • Thread Size: M22x1
  • Diameter Outside: 1.142 inches (29.00mm)
  • Shell Size-Insert: 15, D
  • Alternative Parts (Cross-Reference): 311611-000
  • REACH: affected
  • HTSUS: 8538.90.8180
