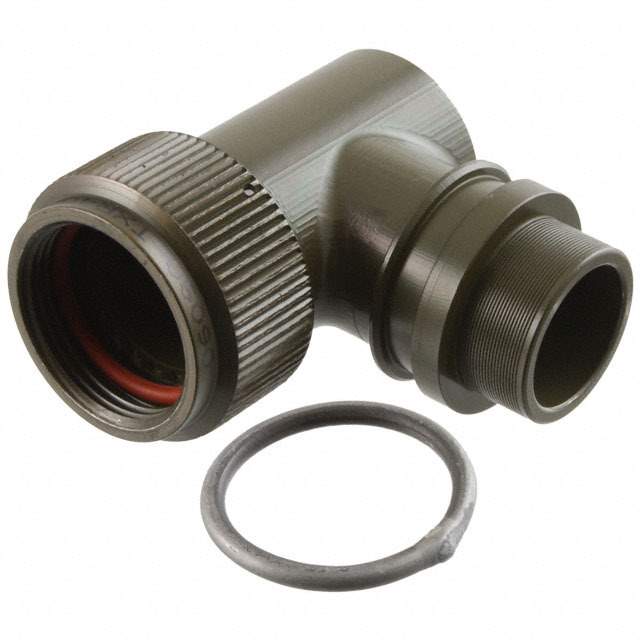

TXR40AB90-1205AI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB90-1205AI

Part No TXR40AB90-1205AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 13C OLIVE / Olive Drab Connector Backshell, Heat Shrink Adapter M18x1 13, C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Raychem Cable Protection
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.965" (24.50mm)
Shell Size - Insert 13, C
Thread Size M18x1
Cable Exit 90°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB90
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 950401-000
Standard Package 1
Win Source Part Number 1038978-TXR40AB90-1205AI
Ultra Librarian 3D Model Ultra Librarian TXR40AB90-1205AI CAD Model

Description

The TXR series olive drab heat shrink adapter backshell is a perfect fit for circular connectors in electronic components.

  • Material: Aluminum Alloy
  • Plating: Cadmium
  • Shell Size: 13, C
  • Thread Size: M18x1
  • Package Includes: 4 pieces - 1 backshell, 1 braid, 1 O-ring, and 1 Tinel ring
  • Cable Exit: 90°
  • Compatible with: MIL-DTL-38999 Series III, IV
  • Ingress Protection: Environment-Resistant
  • RoHS: Non-Compliant
  • ECCN: EAR99
  • HTSUS: 8538.90.8180
  • Manufacturer: TE Connectivity Raychem Cable Protection
