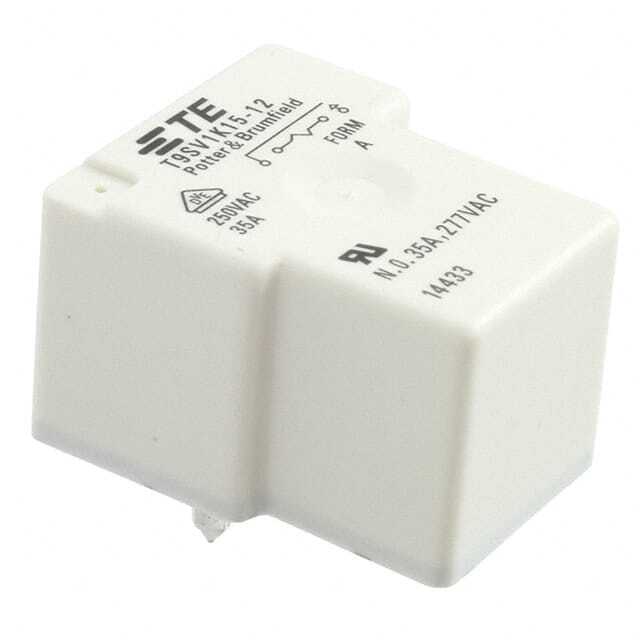

T9SV1K15-12 TE Connectivity
Same model may have multiple batches, images only for reference.

T9SV1K15-12

Part No T9SV1K15-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 35A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T9S
Package Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Max
Coil Current 188 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9.6 VDC
Must Release Voltage 0.8 VDC
Operate Time 18 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 64 Ohms
Base Product Number T9SV1
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2027395-1,-2027395-1-SI,A116848,-2027395-1-CSI
Standard Package 50
Win Source Part Number 1018519-T9SV1K15-12
Ultra Librarian 3D Model Ultra Librarian T9SV1K15-12 CAD Model

Description

The T9S series relay by TE Connectivity Potter & Brumfield Relays is a high-quality power relay with a contact form of SPST-NO (1 Form A).

  • Coil Voltage: 12VDC
  • Coil Resistance: 64 Ohms
  • Contact Rating: 35A
  • Switching Voltage: Up to 277VAC
  • Operating Temperature: -40°C to 85°C
  • Application: General-purpose
  • Mounting Type: Through Hole
  • Package: Bulk
  • Standard Package: 50
  • Cross-Reference: 2027395-1, -2027395-1-SI, A116848, and -2027395-1-CSI
  • MSL Level: 1 (Unlimited)
  • Must Operate Voltage: 9.6VDC
  • Must Release Voltage: 0.8VDC
