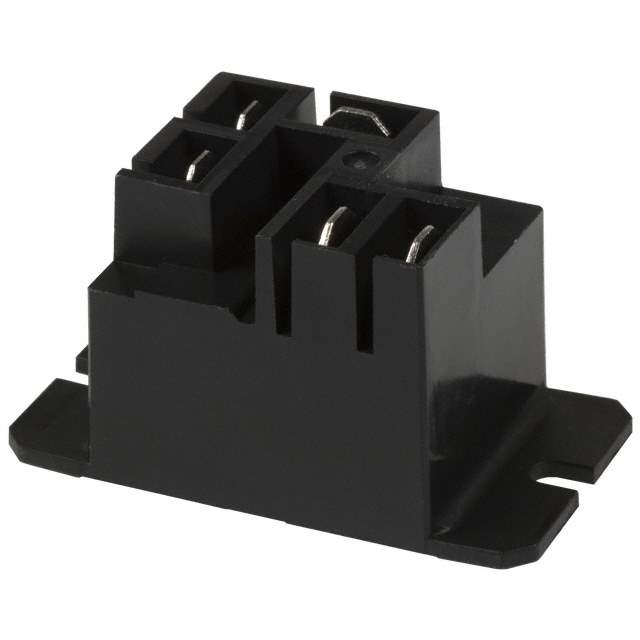

T9AP5D52-24

Part No T9AP5D52-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T9A
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 277VAC - Max
Coil Current 41.7 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187"/0.250"
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 576 Ohms
Base Product Number T9AP5
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names -T9AP5D52-24-SI,5-1419102-2,PB311-NDR,PB311,T9AP5D5224
Standard Package 50
Win Source Part Number 1054869-T9AP5D52-24
Ultra Librarian 3D Model Ultra Librarian T9AP5D52-24 CAD Model

Description

The T9AP5D52-24 is a high-quality relay that is perfect for various applications.

  • Win Source Part Number: 1054869
  • Relay Type: General Purpose
  • Contact Form: SPDT
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Contact Rating: 20A
  • Switching Voltage: 277VAC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 576 Ohms
  • Coil Current: 41.7 mA
  • Coil Type: Non-Latching
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • ECCN: EAR99
  • RoHS Compliant: Yes
  • Temperature Range: -55℃ ~ 85℃
