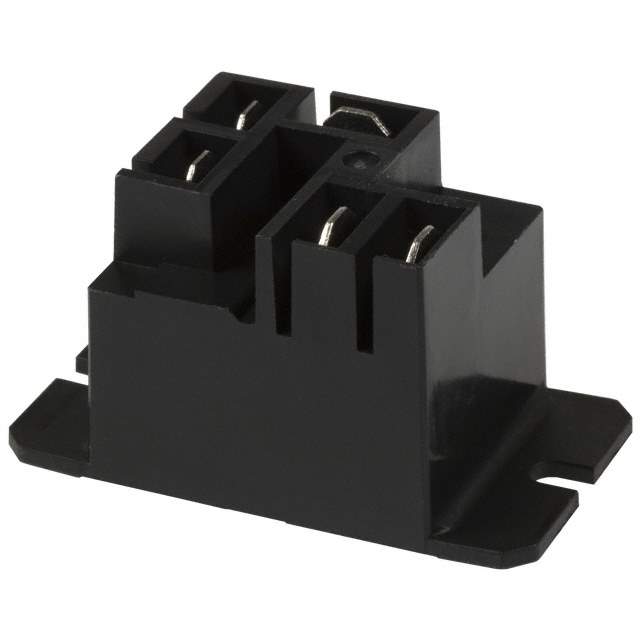

T9AP5D52-12 Real Image
Same model may have multiple batches, images only for reference.

T9AP5D52-12

Part No T9AP5D52-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T9A
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Switching Voltage 277VAC - Max
Coil Current 83 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187"/0.250"
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 144 Ohms
Base Product Number T9AP5
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names -T9AP5D52-12-SI,5-1419102-4,PB310,PB310-NDR,T9AP5D5212
Standard Package 50
Win Source Part Number 1108840-T9AP5D52-12
Ultra Librarian 3D Model Ultra Librarian T9AP5D52-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T9AP5D52-12 relay is a general-purpose component that has a coil voltage of 12VDC and a contact rating of 20A.

  • Contact Form: This SPDT (1 Form C) relay.
  • Switching Voltage: It has a switching voltage of 277VAC.
  • Termination Style: It has a quick-connect termination style of 0.187"/0.250".
  • Coil Resistance: The coil resistance of this relay is 144 ohms.
  • Coil Current: Its coil current is 83mA.
  • Operate Time: The operate time of this non-latching coil type relay is 15ms.
  • Release Time: The release time of this non-latching coil type relay is 15ms.
  • Temperature Range: The temperature range for this relay is -55°C to 85°C.
