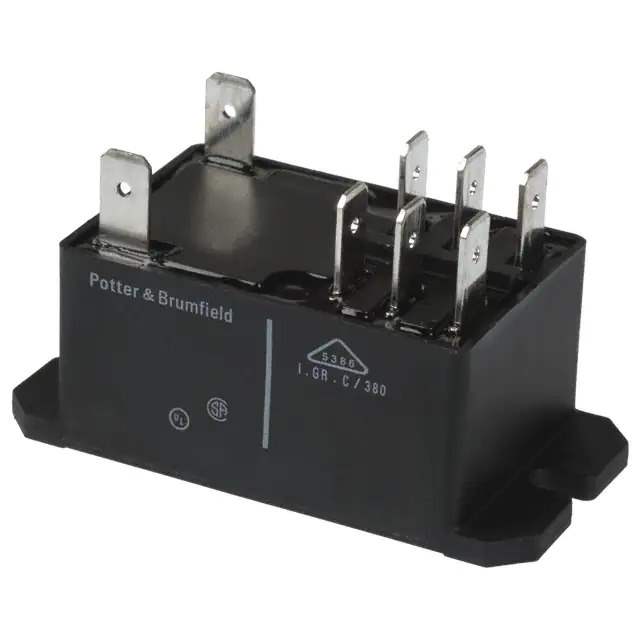

T92P7D12-24 Real Image
Same model may have multiple batches, images only for reference.

T92P7D12-24

Part No T92P7D12-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 30A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series T92
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 70.8 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 350 Ohms
Base Product Number T92P7
Standard Package 30 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 898967-T92P7D12-24
Ultra Librarian 3D Model Ultra Librarian T92P7D12-24 CAD Model

Description

The 898967-T92P7D12-24 is a power relay from TE Connectivity.

  • Series: T92
  • Package: Bulk
  • Quantity per Package: 30 pieces
  • Application: Power Relay
  • Current Rating: 30 Amps
  • Contact Form: DPST-NO (2 Form A)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Resistance: 350 Ohms
  • Coil Current: 70.8 mA
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Coil Voltage: 24VDC
  • Switching Voltage: 277VAC
  • Seal Rating: Not specified
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 85°C
  • MSL Level: Not Applicable
  • Coil Insulation: Class F
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • REACH: REACH affected
  • HTSUS: 8536.41.0050
  • Base Product Number: T92P7
  • Status: Active
