Same model may have multiple batches, images only for reference.

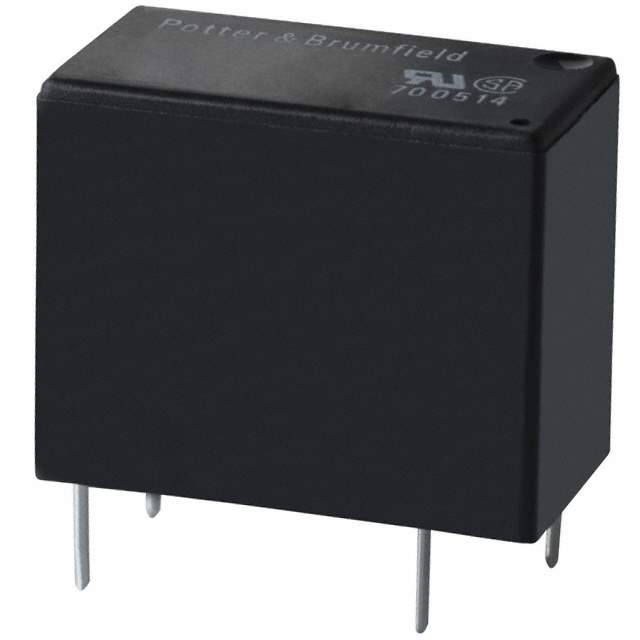

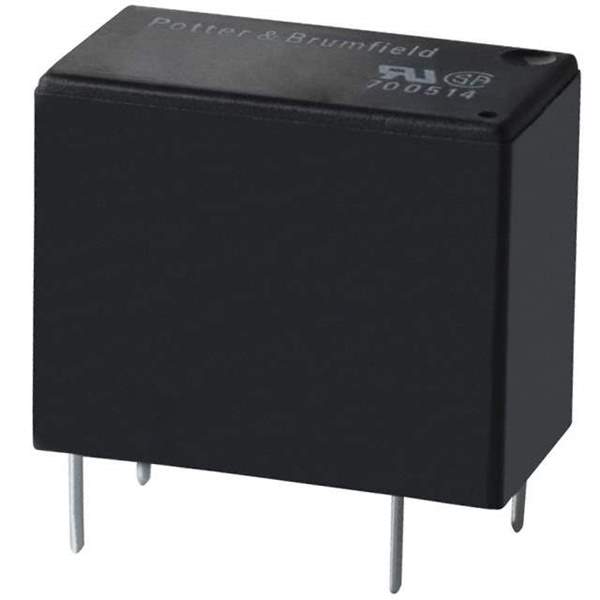

T77V1D3-05 Real Image
Same model may have multiple batches, images only for reference.

T77V1D3-05

Part No T77V1D3-05
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 3A 5V
Datasheet
T77V1D3-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.25 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 125 Ohms
Temperature Range - Operating -30°C to 105°C
Win Source Part Number 212532-T77V1D3-05
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T77V1D3-05 CAD Model

Description

The T77V1D3-05 is a general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Switching Current: Up to 3A
  • Maximum Voltage: 250VAC or 30VDC
  • Mounting Style: Through-Hole
  • Coil Voltage: 5VDC
  • Supply and Demand: Limited
  • Fake Product Threat: 44% in the open market
