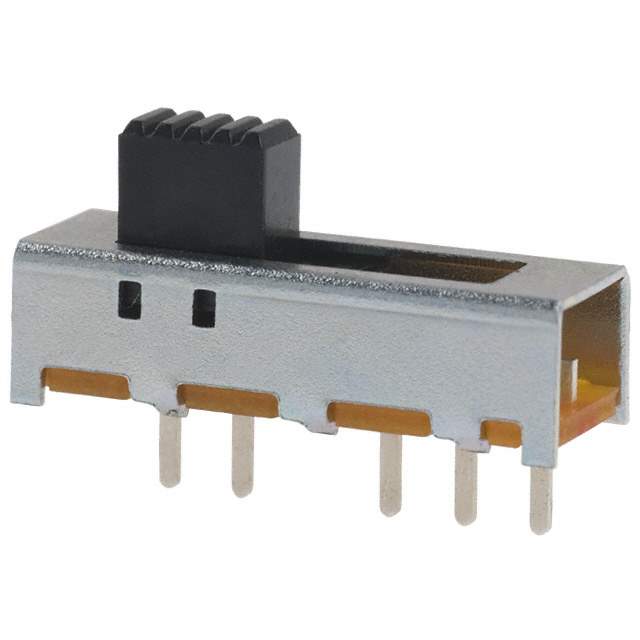

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Actuator Length 4 mm
Actuator Material Acetal, Polyoxymethylene
Contact Current Rating 250 mA
Contact Material Silver
Contact Plating Silver
Contact Resistance 30 mΩ
Contact Style Shorting
Current Rating 300 mA
Depth 6.1 mm
Flammability Rating UL94 HB
Lead Free Lead Free
Length 18.01114 mm
Max Current Rating 250 mA
Max Operating Temperature 60 °C
Max Voltage Rating (AC) 125 V
Mechanical Life 10 kcycles
Min Operating Temperature -10 °C
Mount Through Hole
Number of Positions 4
Orientation Vertical
Packaging Bulk
Radiation Hardening No
RoHS Compliant
Schedule B 8536509050
Switch Travel 2.5 mm
Tail Length 2.4892 mm
Termination PC Pins, SMD/SMT
Throw Configuration SP4T
Type Switch
Voltage Rating (AC) 125 V
Width 6.1 mm
Win Source Part Number 1114925-STS1400PC04
Categories Slide Switches
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STS1400PC04 CAD Model

Description

The TE Connectivity STS1400PC04 is a 4-position slide switch with PC pins and SMD/SMT termination.

  • Contact Material: Silver
  • Current Rating: 300 mA
  • Mechanical Life: 10 kcycles
  • Contact Resistance: 30 mΩ
  • Contact Current Rating: 250 mA
  • Switch Travel: 2.5 mm
  • Actuator Length: 4 mm
  • Mounting: Through Hole
  • Lead-Free: Yes
  • Temperature Range: -10 °C to 60 °C
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Alternative Part: 1825161-2
