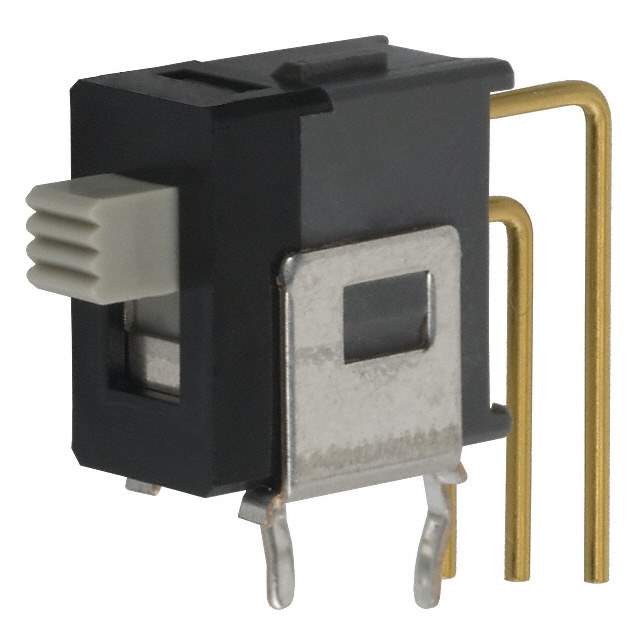

Same model may have multiple batches, images only for reference.

AS13AV

Name: AS13AV
Brand: NKK Switches
SKU: 1229134
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AS13AV
Manufacturer	NKK Switches
Catalog	Slide Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V / Slide Switch SPDT Through Hole, Right Angle, Vertical
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Slide Switches
Mfr	NKK Switches
Series	AS
Package	Tray
Circuit	SPDT
Contact Timing	Non-Shorting (BBM)
Switch Function	On-Off-On
Current Rating (Amps)	0.4VA (AC/DC)
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V
Actuator Type	Standard
Actuator Length	2.50mm
Contact Material	Phosphor Bronze
Contact Finish	Gold
Mounting Type	Through Hole, Right Angle, Vertical
Termination Style	PC Pin
Features	Epoxy Sealed Terminals
Temperature Range - Operating	-30°C ~ 85°C
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Switch Travel	2.50mm
Mechanical Life	50,000 Cycles
Electrical Life	50,000 Cycles
Operating Force	260gf
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9050
Other Names	AS13AV-RO,360-2126
Standard Package	1
Win Source Part Number	1229134-AS13AV
Ultra Librarian 3D Model	Ultra Librarian AS13AV CAD Model

Description

The NKK Switches AS series slide switch is a SPDT circuit switch with an on-off-on switch function.

Circuit: SPDT
Switch Function: On-Off-On
Actuator Type: Standard
Actuator Material: Polyamide (PA), Nylon, Glass-Filled
Voltage Rating: 28V (AC/DC)
Current Rating: 0.4VA (AC/DC)
Termination Style: PC Pin
Terminals: Epoxy Sealed
Contact Timing: Non-Shorting (BBM)
Contact Finish: Gold
Switch Travel: 2.50mm
Mounting Type: Through-Hole, Right Angle, Vertical
Operating Temperature Range: -30°C to 85°C
Packaging: Tray
Standard Package: 1
