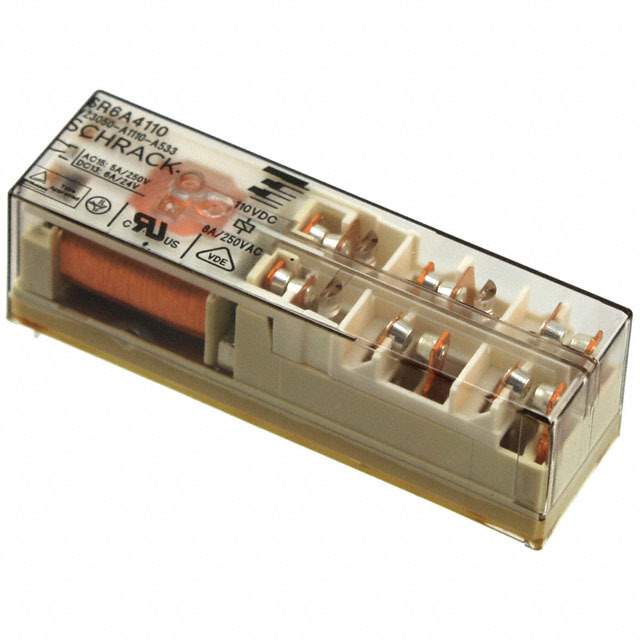

SR6B6K24 Real Image
Same model may have multiple batches, images only for reference.

SR6B6K24

Part No SR6B6K24
Manufacturer TE Connectivity
Catalog Safety Relays
Description RELAY SAFETY 6PST 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Safety Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Through Hole
Coil Voltage 24VDC
Contact Form 6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 33.3 mA
Coil Power 800mW
Coil Resistance 720 Ohms
Base Product Number SR6B
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number 8-1415537-0-ND,814155370,PB1313,8-1415537-0
Standard Package 10
Win Source Part Number 1323821-SR6B6K24
Ultra Librarian 3D Model Ultra Librarian SR6B6K24 CAD Model

Description

The SR6B6K24 is a safety relay from TE Connectivity Potter & Brumfield Relays.

  • Packaging: Tube
  • Termination Style: PC Pin
  • Contact Form: 6PST-4NO/2NC (4 Form A, 2 Form B)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Standard Package: 10
  • Mounting: Through-Hole
  • Coil Resistance: 720 Ohms
  • Coil Current: 33.3 mA
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 8 A
  • Switching Voltage: 400VAC - Max
  • Coil Power: 800mW
  • Temperature Range - Operating: -25°C ~ 70°C
  • MSL Level: 1 (Unlimited)
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 2.4 VDC
  • HTSUS: 8536.41.0020
  • Base Product Number: SR6B
  • ROHS Status: ROHS3 Compliant
