Products specifications Report Issue?

Win Source Part Number Cross

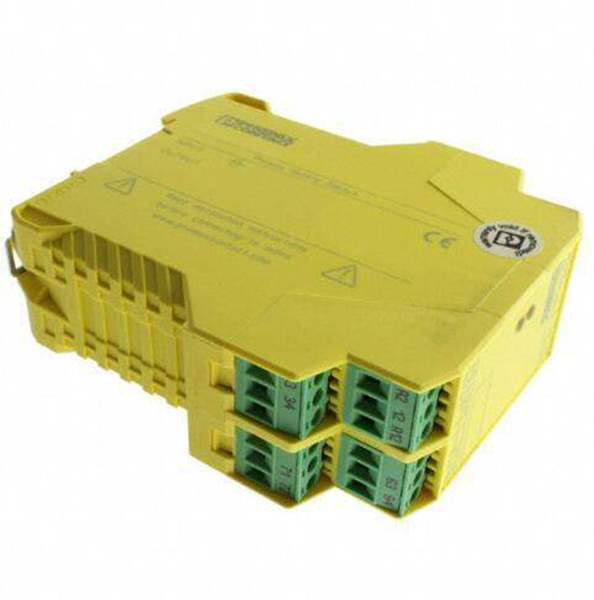

Manufacturer Phoenix Contact
Category Relays Safety Relays
Package Bulk
Product Status Active
Mounting Type DIN Rail
Coil Voltage 24VAC/DC
Contact Form 6PST-5NO/1NC (5 Form A, 1 Form B)
Switching Voltage 250VAC, 250VDC - Max
Termination Style Screw Terminal
Operating Temperature -20°C ~ 55°C
Win Source Part Number WS1207565-2963734
Ultra Librarian 3D Model Ultra Librarian 2963734 CAD Model

Description

The safety relay can be used as a contact extension for emergency stop relays and two-hand control devices. The extension module is used in safety circuits according to EN 60204-1. The safety relay is equipped with five enabling current paths, one signaling current path, and one confirmation current path that drop out without delay according to stop category 0. Depending on the basic device, up to category 4, PL e according to EN ISO 13849-1 or SILCL 3 according to EN 62061 can be achieved once confirmation current path 11/12 has been wired externally and correctly connected.
