SDT-S-109LMR,000 TE Connectivity
Same model may have multiple batches, images only for reference.

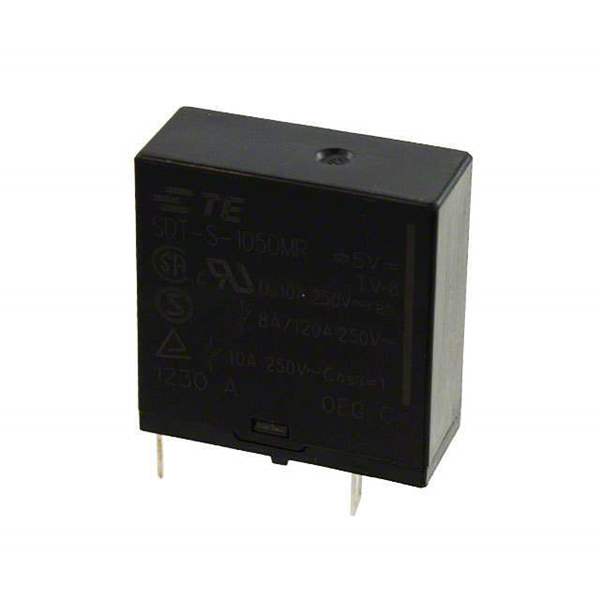

SDT-S-109LMR,000

Part No SDT-S-109LMR,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 9V / Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series SDT-R, OEG
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 27.8mA
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Maximum) 6.75 VDC
Turn Off Voltage (Minimum) 0.9 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class E
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 250 mW
Coil Resistance 324 Ohms
Operating Temperature Range -30°C ~ 70°C
Win Source Part Number 794054-SDT-S-109LMR,000
Popularity Medium
Supply and Demand Status Limited
Family Name SDT
Introduction Date June 02, 2003
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SDT-S-109LMR,000 CAD Model

Description

TE Connectivity Potter & Brumfield Relays SDT-S-109LMR,000 is a general relay.

  • Contact Form: SPST-NO (1 Form A)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Packaging: Tube
  • Termination Style: PC Pin
  • Operating Temperature Range: -30°C ~ 70°C
  • Insulation Class: E
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 324 Ohms
  • Coil Current: 27.8mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Coil Voltage: 9VDC
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Power: 250 mW
  • Turn On Voltage (Maximum): 6.75 VDC
  • Turn Off Voltage (Minimum): 0.9 VDC
  • Family Name: SDT
  • Introduction Date: June 02, 2003
  • Estimated EOL Date: 2025
  • Halogen-Free: No
