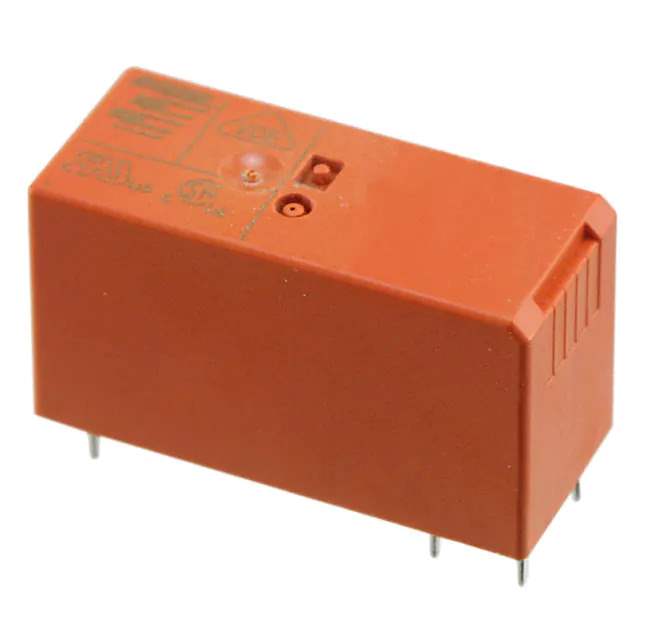

RTS3TF12 Real Image
Same model may have multiple batches, images only for reference.

RTS3TF12

Part No RTS3TF12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT1, Inrush, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO), Tungsten (W)
Relay Type General Purpose
Coil Resistance 240 Ohms
Base Product Number RTS3
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 661783-RTS3TF12
Ultra Librarian 3D Model Ultra Librarian RTS3TF12 CAD Model

Description

The RTS3TF12 power relay from TE Connectivity is a specialized component designed for inrush current applications. It belongs to the RT1 series and features a contact form of SPST-NO (1 Form A), providing a single normally open contact.

  • Series: RT1
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver tin oxide (AgSnO) and tungsten (W)
  • Coil Voltage: 12VDC
  • Coil Resistance: 240 Ohms
  • Coil Current: 50 mA
  • Contact Rating: 16 A, up to 400VAC
  • Response Time: 10 ms
  • Release Time: 10 ms
  • Protection: sealed with flux protection
  • Mounting: through-hole
  • Temperature Range: -40°C to 85°C
  • Applications: various industrial and consumer applications
