Same model may have multiple batches, images only for reference.

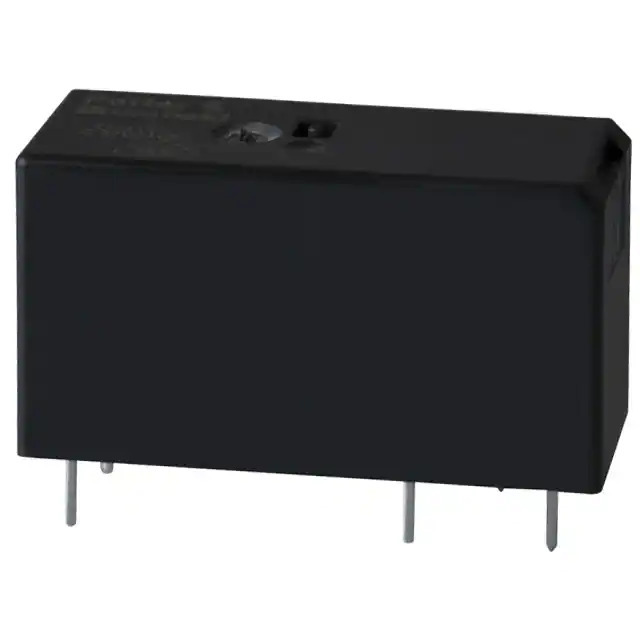

RTB14024 TE Connectivity
Same model may have multiple batches, images only for reference.

RTB14024

Part No RTB14024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number RTB14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1355814-RTB14024
Ultra Librarian 3D Model Ultra Librarian RTB14024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RT1, SCHRACK Power Relay is a high-quality component designed for power applications. TE Connectivity Potter & Brumfield Relays RT1, SCHRACK

  • Temperature Range: -40°C ~ 85°C
  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Contact Rating (Current): 12 A
  • Switching Voltage: 400VAC
  • Mounting Type: Through Hole
