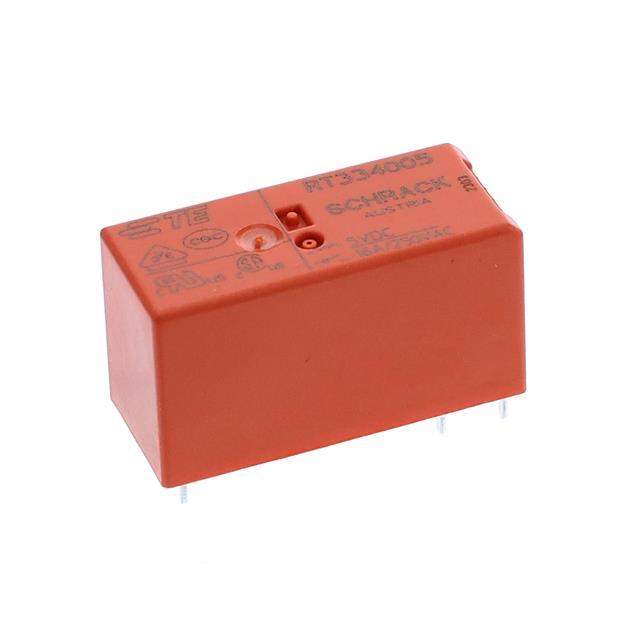

RT334005 Real Image
Same model may have multiple batches, images only for reference.

RT334005

Part No RT334005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 80.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 62 Ohms
Base Product Number RT334
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1316247-RT334005
Ultra Librarian 3D Model Ultra Librarian RT334005 CAD Model

Description

The RT334005 is a power relay from TE Connectivity Potter & Brumfield Relays that is categorized under the Relays group.

  • Contact Rating: 16A
  • Switching Voltage: 400VAC - Max
  • Contact Form: SPST-NO (1 Form A)
  • Seal: Sealed for flux protection
  • Coil Voltage: 5VDC
  • Coil Resistance: 62 Ohms
  • Operate Time: 8ms
  • Release Time: 6ms
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
